XINGTE XT-BL06 6 stations stator winding machine
Product feature

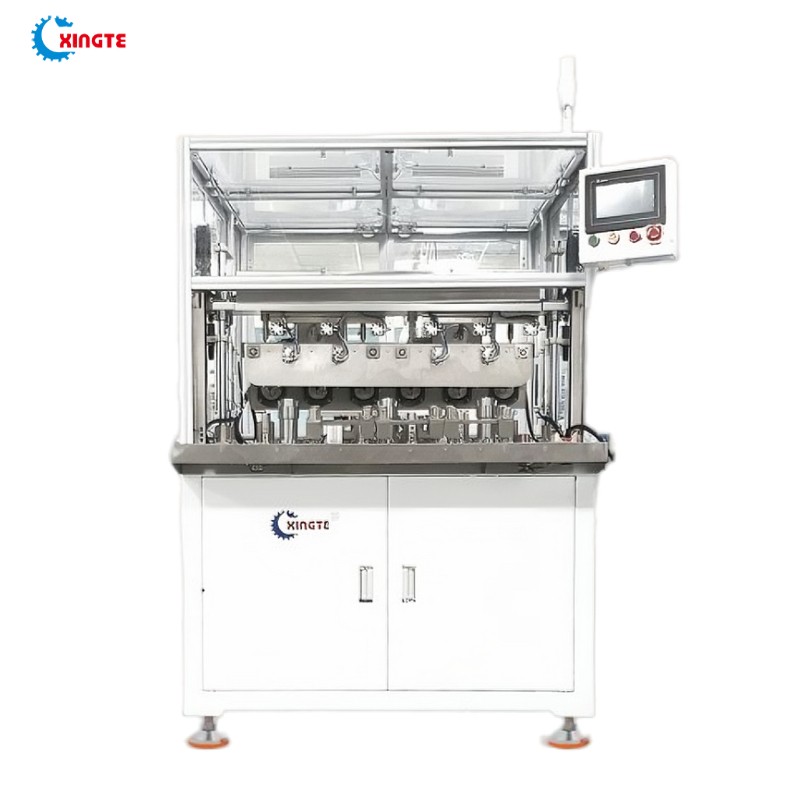

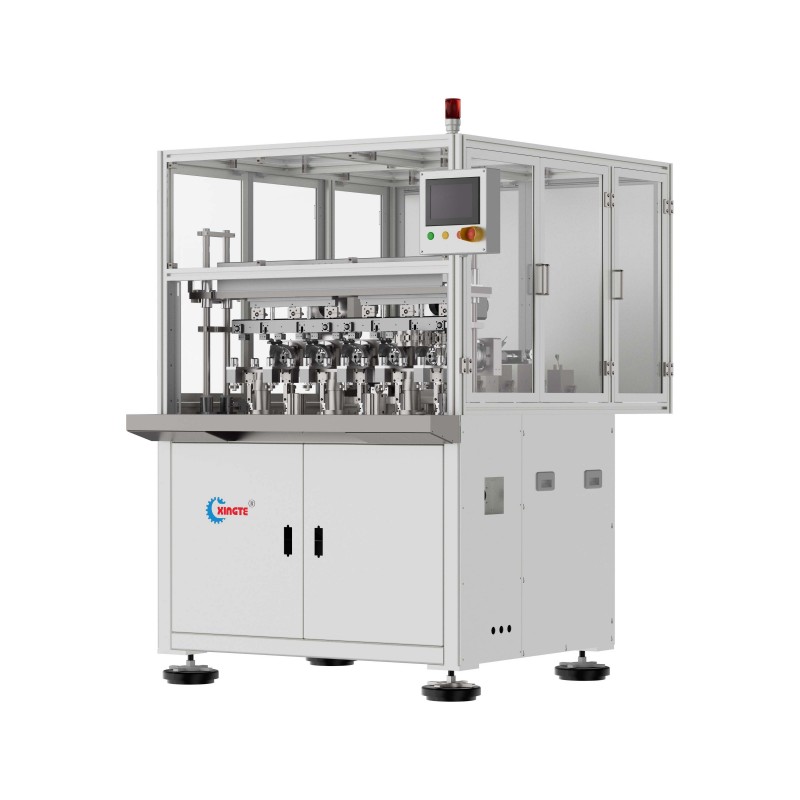

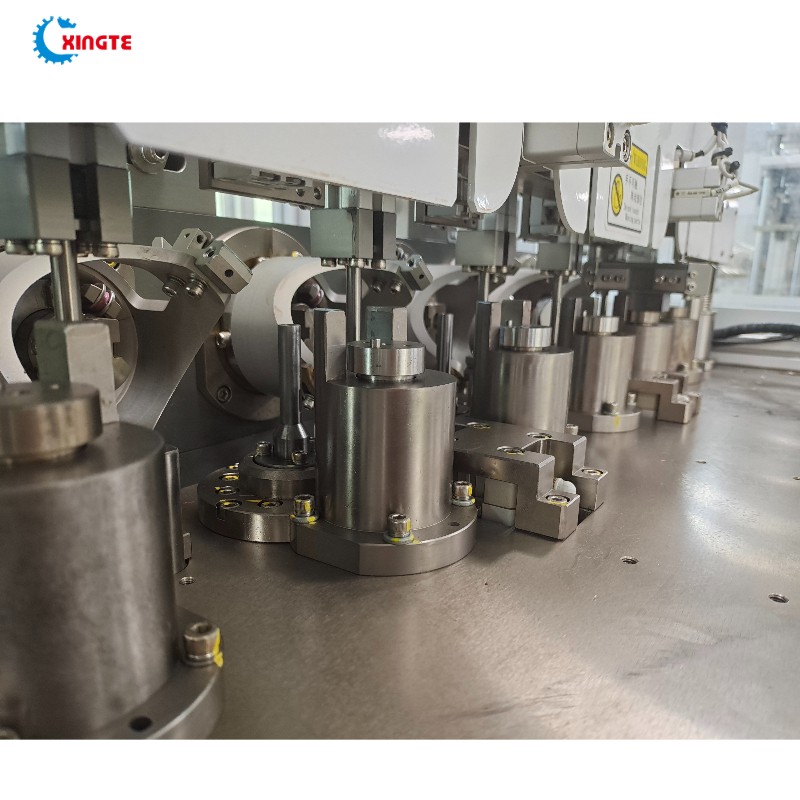

Xingte High Precision 6 stations stator Wire Winding Machine
Stator high-precision wire winding machine, flying fork outer winding equipment, 6 stations design, compact structure, small size, fast running speed, wide range of applicable wire diameters, neat wire arrangement without damage. The equipment process includes loading, hanging, winding, arranging, pulling, trimming, unloading, etc.
6 stations winding, improving efficiency.
Achieve precision wiring, no wire damage, and can reserve wire ends and tails.
Adopts flexible and modular design, with a clean appearance and versatile structure, offering broader compatibility.
Achieves wire head and tail insertion into the insulation frame slots and straightens the wire ends, with fully automatic wire cutting.
Upper and lower wire routing can operate independently, meeting various wire arrangement requirements, and better accommodating product diversity.
6-station design allows for independent operation of left and right stations, as well as synchronized operation, for convenient maintenance.
Optional electronic tensioner, servo tensioner control system for precise wire tension adjustment
Product parameters
| Model | XT-BL06 |
| No. of stations | 6 stations |
| Stator inner dia. | Ref: Min. Ø20mm |
| Stator Stack height | Ref: Max. 46mm |
| Applied Wire size | Ref: øMax. Ø0.5mm |
| Angular accuracy | +/-0.5° |
| Winding speed: | Ref: Max 6000 rpm(depends on stator pec.) |
| Power supply | AC 380V,50/60Hz |
| Power | 4.5Kw |
| Air pressure | Min. 0.6MPa |
| Machine dimensions | 1,200(L)x1,600(W)x1,800(H)mm |
| Machine weight | Approx. 700kgs |
