6 stations rotor winding machine

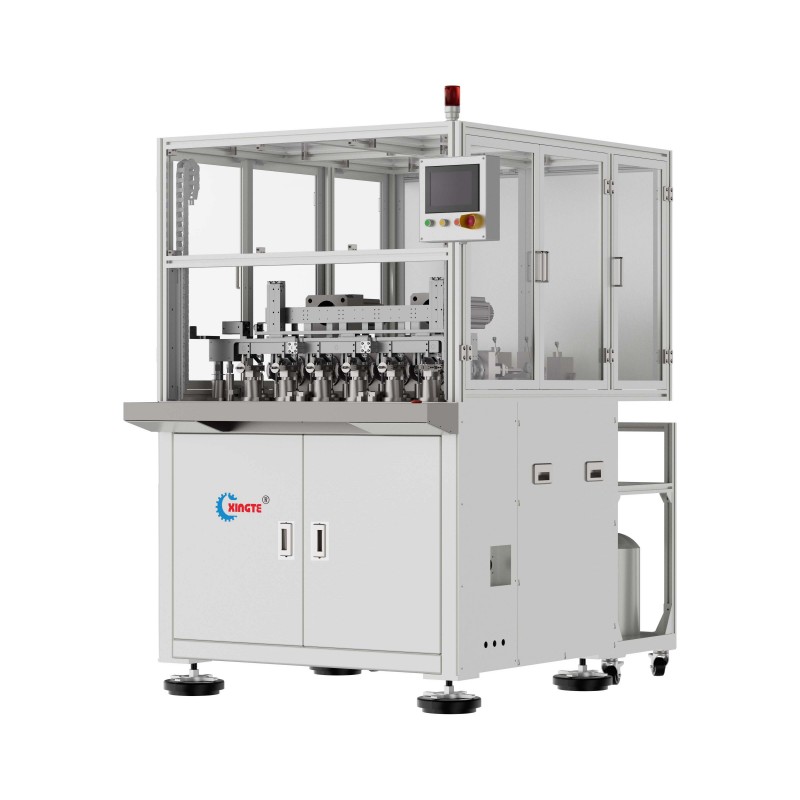

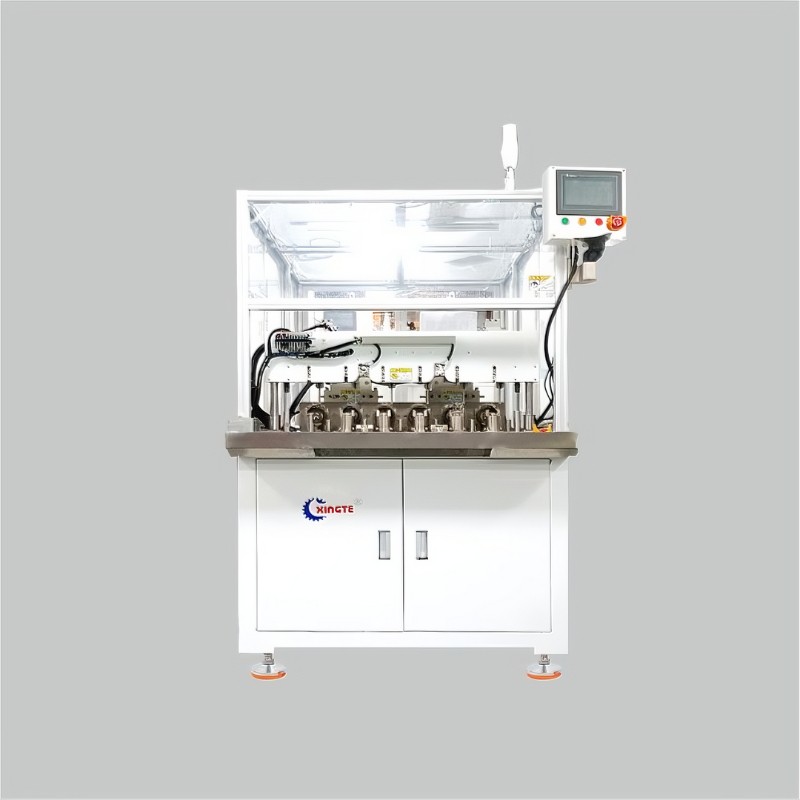

XT-F06D Automatic Outer Rotor Winding Machine, Rotor Coil Winding Machine, Multi Poles External Rotor Winding Machine

6 working stations simultaneously winding, greatly improve the production efficiency

This 6-station flying fork rotor winding machine is 5-6 times more efficient than the single flying fork winding equipment currently on the market.

It is fully automatic loading and unloading and requires only one person to operate. The equipment has a compact design, a small footprint, and reasonable use of space. It consists of core loading, winding, spot welding, finishing, testing, blanking, and other processes.

Advantages of XINGTE Multi-Station Flyer Fork Rotor Winding Machine:

1. Zero Waste: Automatic vertical rotor movement eliminates waste of wire ends and copper wire during winding.

2. High Precision: Six-station flying fork winding ensures a low defect rate of only 0.5%.

3. Versatility: Multiple winding modes and quick mold changeover make the machine suitable for various products.

4. Large Storage: Ample program storage capacity and reserved automation ports provide high compatibility.

5. Automated Production: Can be linked with multiple units to form an automated production line for increased efficiency.

6. User-Friendly Interface: Tension wire breakage alarm and touchscreen program modification enhance ease of use.

Machine Features:

1, adopt a motion controller, the response speed is fast and the efficiency is high;

2, Six-station automatic wire winding, automatic wire arrangement, automatic slot changing;

3, Adopting Precision ball screw is used for wiring, The winding is neat, tight, and consistent, Effectively improving production efficiency, reducing wire consumption, and improving product quality.

4, Cast aluminum body + sheet metal frame, stable and reliable.

5, adopt a 10 10-inch PLC touch-screen interface that is convenient for operation and can memorize multiple sets of parameters simultaneously.

6, Twelve spindles (six winding stations + six loading stations), automatic winding, automatic wire arrangement, automatic slot changing, automatic winding, automatic cutting of thread ends and thread ends, high degree of automation;

Optional pneumatic scissors/electronic tensioner/servo tensioner.

Product parameters
