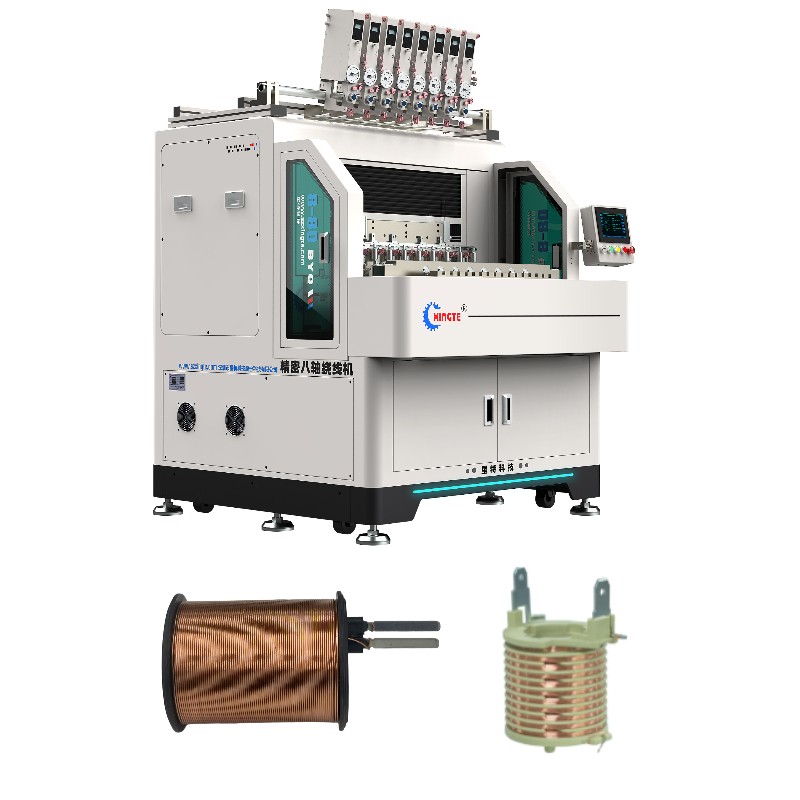

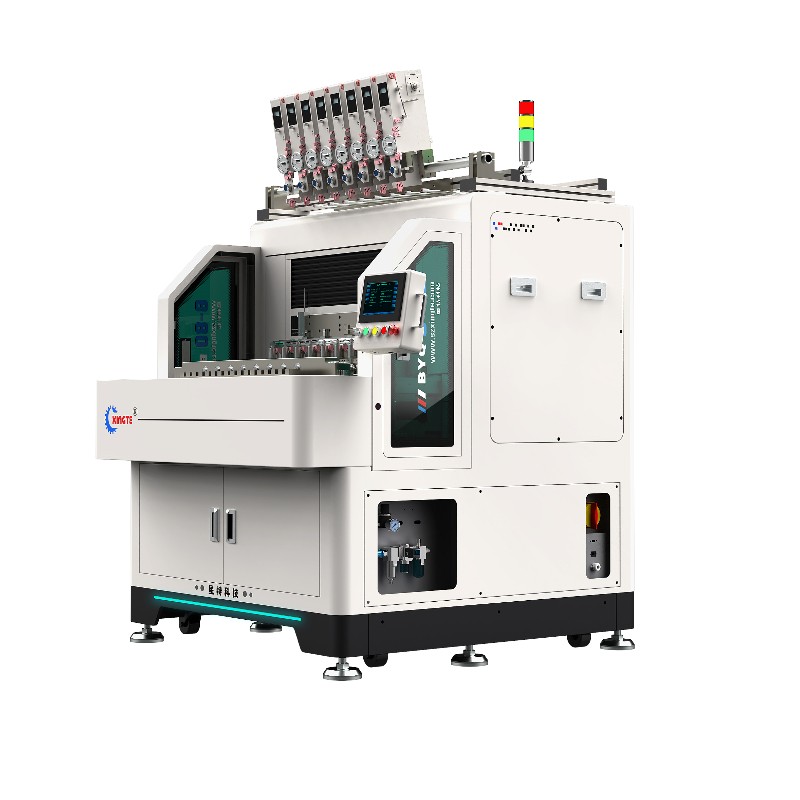

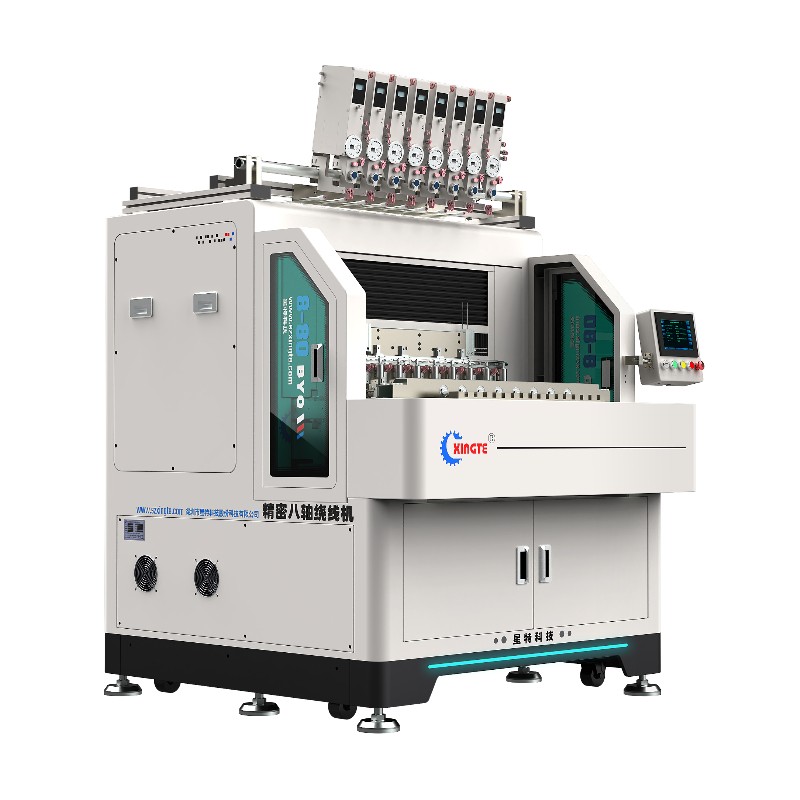

8 Spindles high precision transformer coil winding machine XT-CTW08
This multi-axis winding machine is specifically designed for products requiring high-precision wire routing. It can automatically load,
wind, and unload wires simultaneously at eight stations.
It features ultra-high speed, compact size, and space-saving design.
The machine features a stylish design, simple operation, and easy maintenance.
Programming is via a computer or touch screen. A unique joint fixture design and precise belt tension control ensure neat product alignment.
Automatic wire clamping and trimming save winding time.
Product Parameters
| Model number: | XT-CTW08 |
| Wire Diameter : | 0.01 ~ 0.8mm |
| Number of spindles | 8 spindles |
| Maximum winding speed | 9200Rpm |
| Power: | 4.5KW |
| Power supply: | AC 220V,50/60Hz |
| Air pressure: | 0.4-0.6Mpa |
| Machine dimension: | 1300(W)X1500(D)X2000(H)mm |
| G. W: | 650KGS |
Application areas
Suitable for home appliances, automobiles, new energy, communications, industrial power supplies, medical, aerospace, and military,
water pumps, water valves, consumer transformers, SMD transformers, etc.
