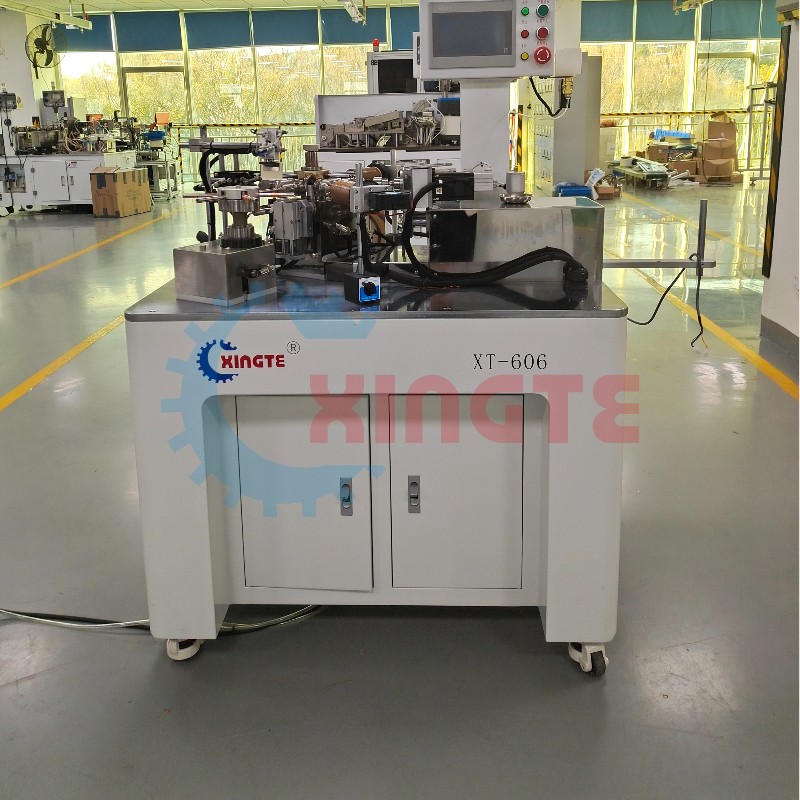

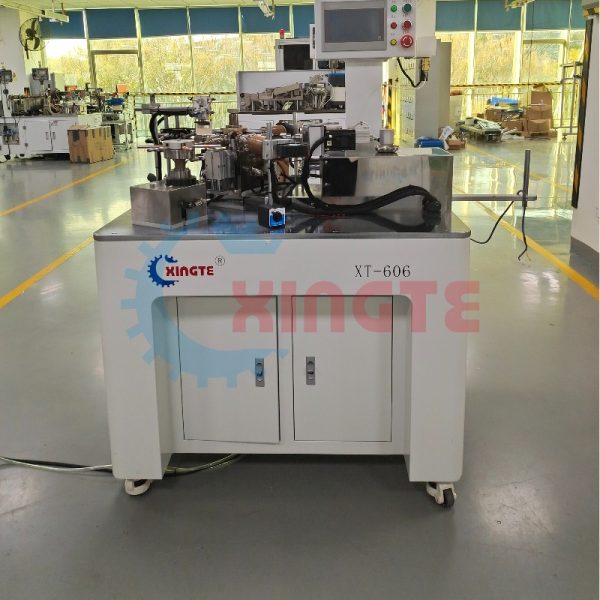

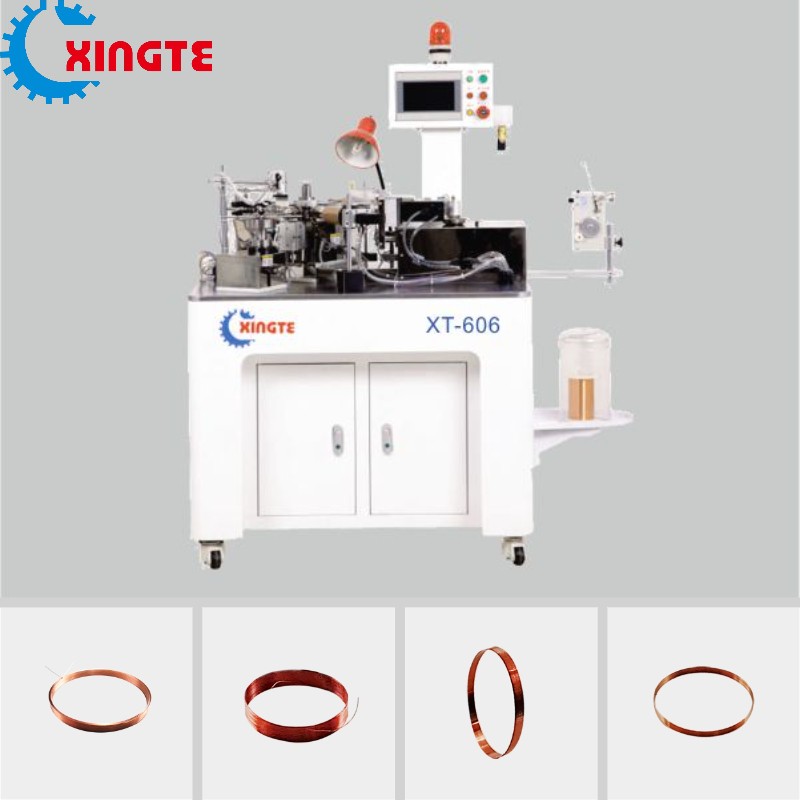

This machine is specially designed for air voice coils, which can wind two kinds of enameled wires: alcohol-soluble and hot air. Manual feeding can also do the winding of general skeleton voice coils.
Product Features
The control system adopts an English touch screen interface.
The mechanical operation part is reasonably designed. The metal materials used have been processed with special processes.

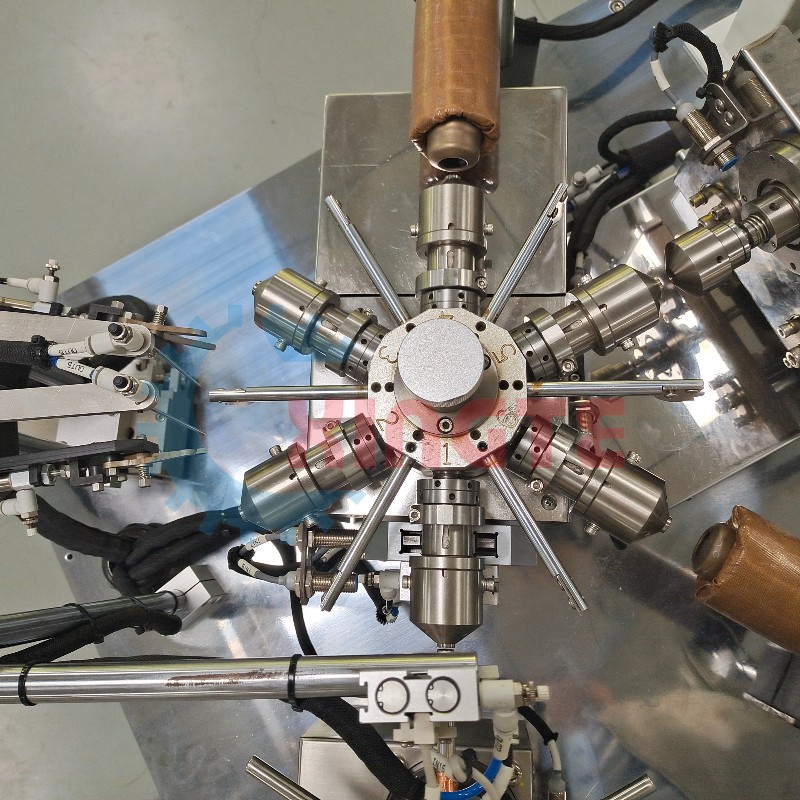

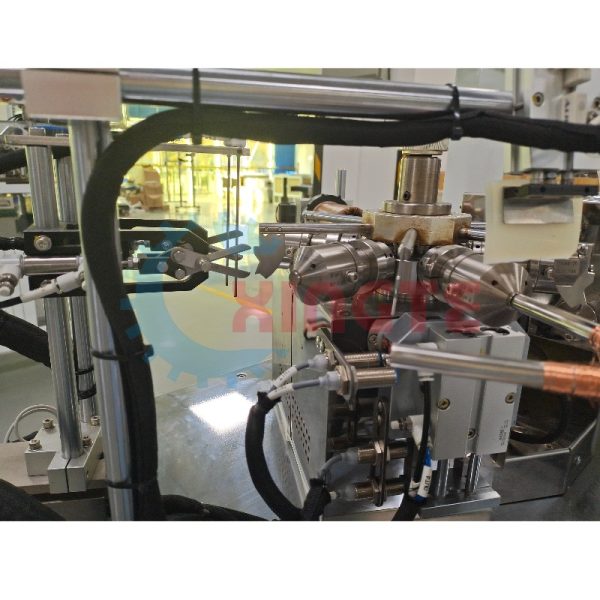

The mechanical motion parts all use advanced servo motors and high-precision ball screws, Imported bearings ensure the high quality of the product, Efficiency, and high precision. truly achieve 24-hour stability and efficient production. It can be compatible with fully automated production lines and unmanned workshops. The winding method is spindle flying fork winding, six-station rotating wire trimming, and mold ejection. This machine is the most efficient model in the industry, with an output of about 2600PcS/h calculated at about 30 revolutions per hour.
Product Parameters
| Model number: | XT-606 |
| Wire Diameter : | 0.02-0.45mm |
| Coil stack height | ≤10mm |
| Coil outer diameter | ≤30mm(can customized) |
| Yield rate | ＞ 98% |
| Utilization rate | ＞85% |
| Winding speed | Max. 4800rpm |
| Capacity | 3000pcs /H |
| Power: | 2.2KW |
| Power supply: | AC 220V,50/60Hz |
| Air pressure: | > 0.6Mpa |
| Machine dimension: | 680*1360*1560mm |
| G. W: | 300KGS |
Application areas
Headphone voice diaphragm, in-ear headphone voice diaphragm, true wireless Bluetooth headset voice diaphragm, security speaker voice diaphragm, receiver and other voice diaphragm and voice coil combinations.
