Product features

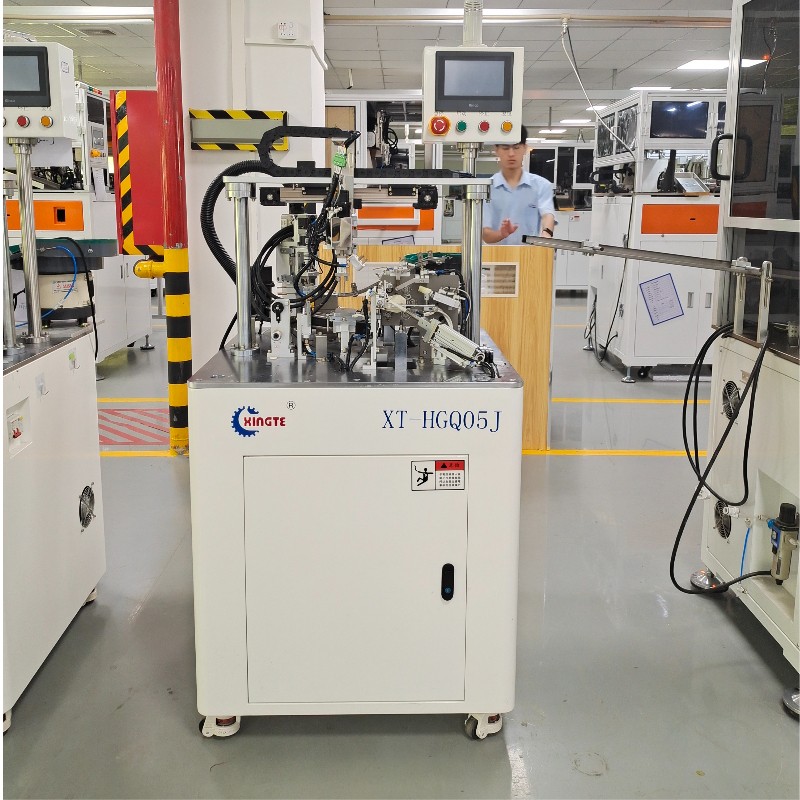

Magnetic ring coil winding machine specially designed for multi-turn thin wires. It truly realizes fully automatic feeding, automatic loading, automatic winding, and fully automatic unloading. One person can operate more than 20 machines without any downtime. Save your labor costs, making fully automated products a reality.

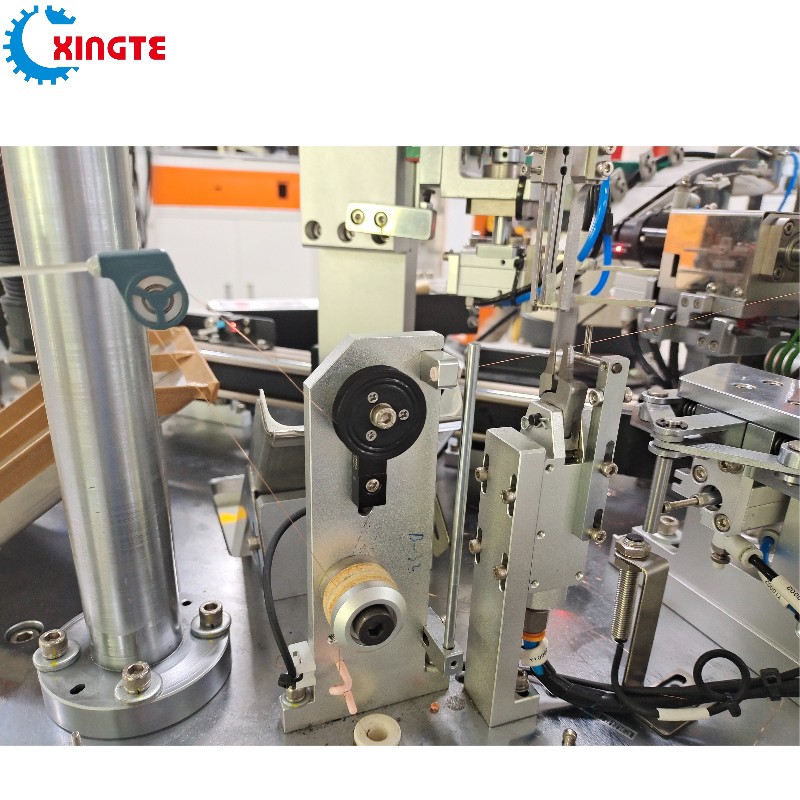

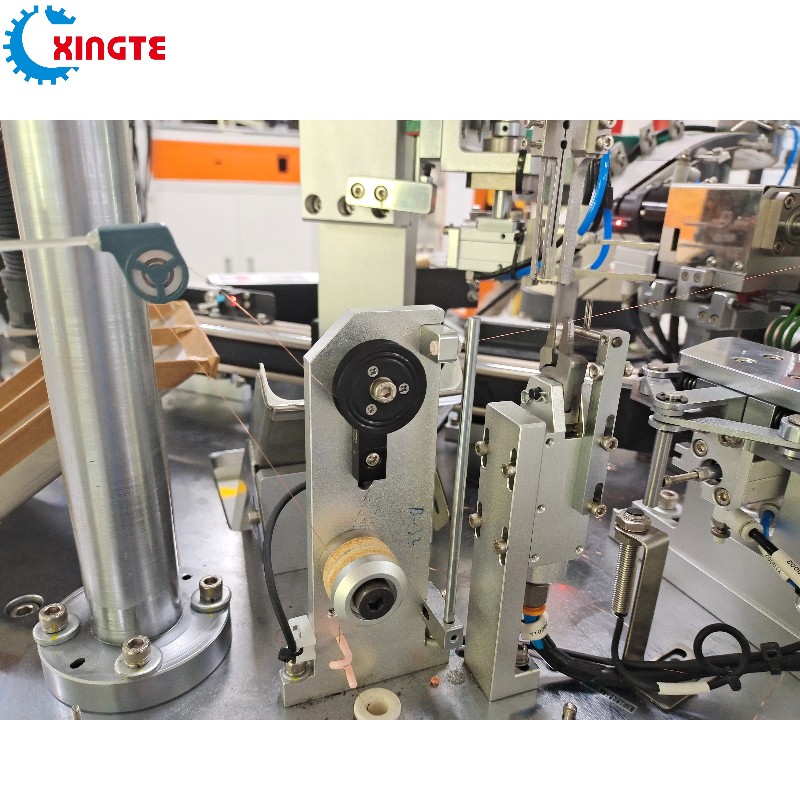

From loading the magnetic core, wire feeding, winding, and unloading, it is fully automated and can wind the wire 360°
Product Parameters

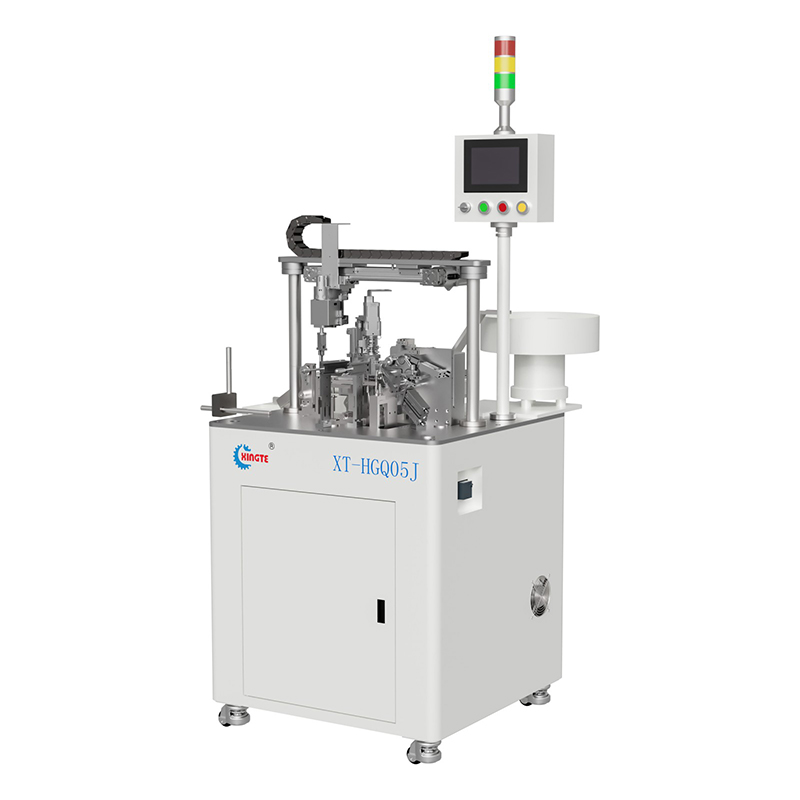

| Model number: | XT-HGQo5J |
| Wire Diameter : | 0.08 ~ 0.4mm |
| Core outer diameter | 10-40mm |
| Core inner diameter | 5-7 mm |
| Wire length | 1-100m |
| Winding speed | 1500RPM |
| Power: | 6KW |
| Power supply: | AC 220V,50/60Hz |
| Air pressure: | > 0.6Mpa |
| Machine dimension: | 900*1150*2000mm |
| G. W: | 400KGS |
Application areas
Mainly aimed at thin wire multi-turn magnetic ring products, such as sensor coils, transformer coils, and leakage protector coils.
