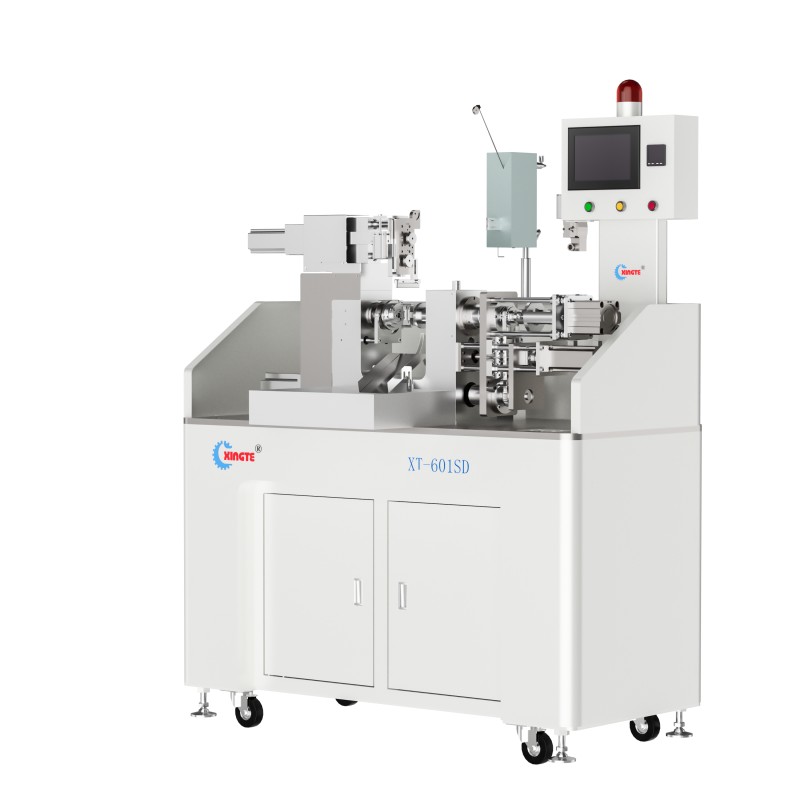

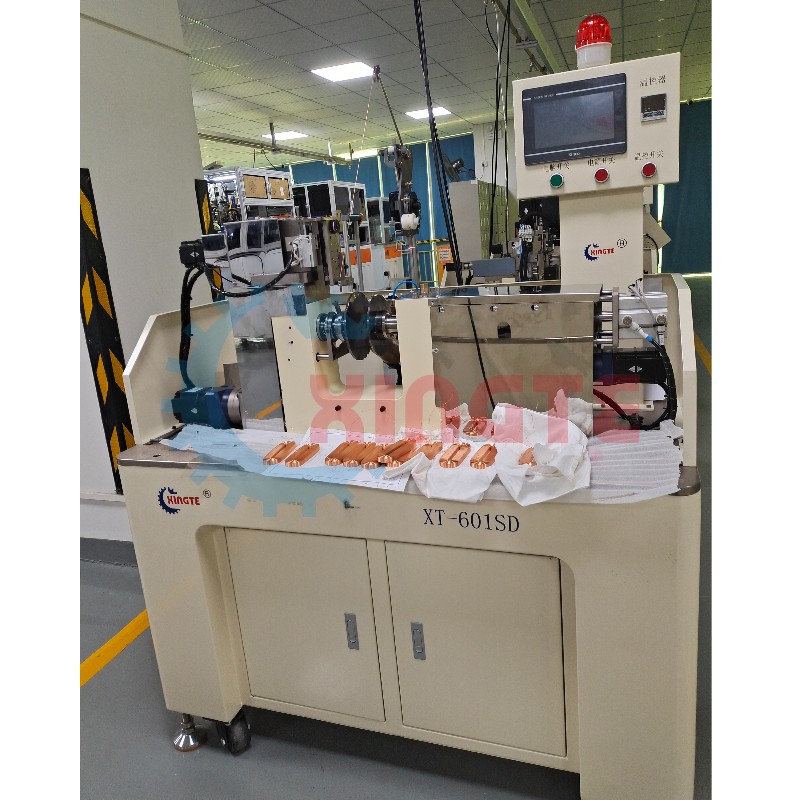

This equipment is a single-axis automatic large-diameter air coil winding machine independently developed and produced by referring to similar foreign products and combining the domestic coil winding production process conditions.
This machine integrates mechanical, electronic and pneumatic technologies and can reliably realize automatic winding of coil products.
Compared with other products, this model is mainly designed for air core coils with larger outer diameters.
Product Features
The control system adopts an English touch screen interface.

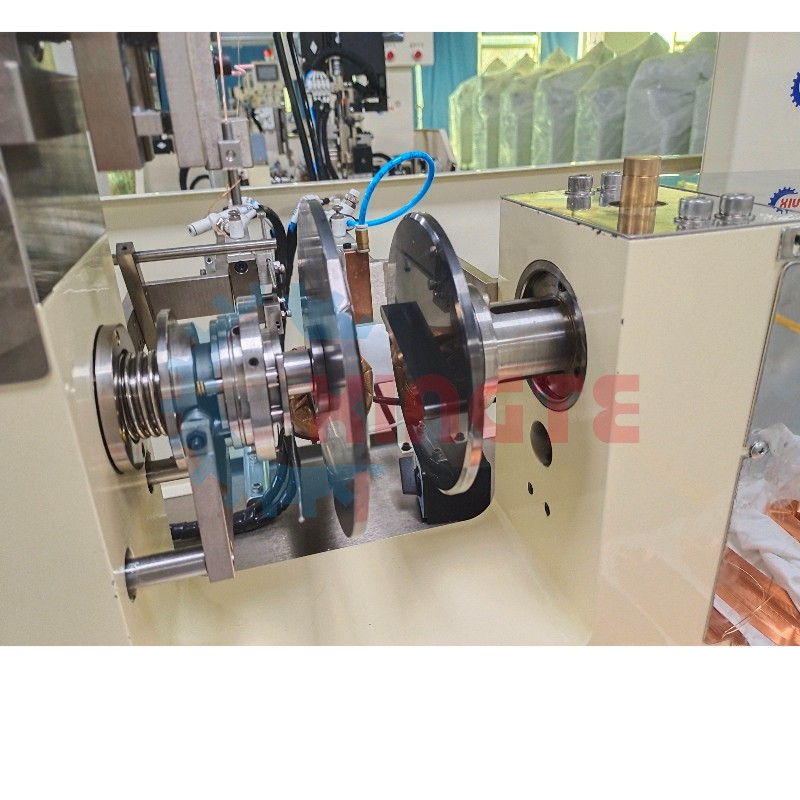

The metal materials used have undergone special processing to extend the service life of the equipment. The mechanical motion parts all use advanced servo motors and high-precision ball screws. The entire machine adopts a safety design to prevent accidents during operation; the equipment can achieve stable and efficient production 24 hours a day. It has strong compatibility and can be compatible with fully automated production lines and unmanned workshops.
Product parameters
| Model number: | XT-601SD |
| Wire Diameter : | 0.06-0.8mm( can customized) |
| Coil stack height | ≤25mm |
| Coil outer diameter | ≤10-200mm |
| Yield rate | ＞ 98% |
| Utilization rate | ＞85% |
| Winding speed | 4000rpm |
| Capacity | 1000pcs /H |
| Power: | 2 KW |
| Power supply: | AC 220V,50/60Hz |
| Air pressure: | > 0.6Mpa |
| Machine dimension: | 980*500*1500mm |
| G. W: | 280KGS |
Application areas

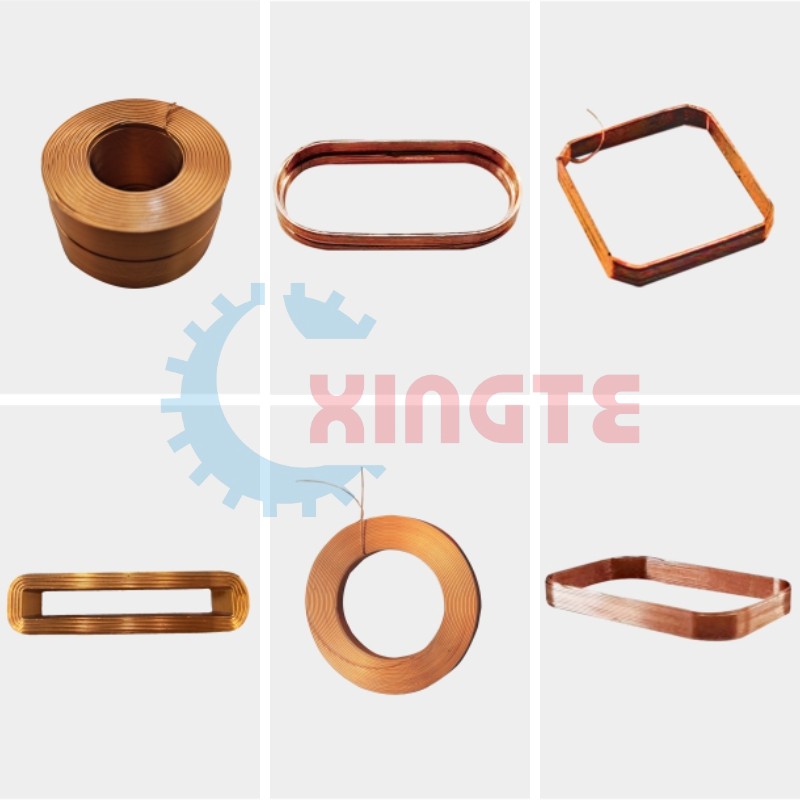

Used for various types of products, laser head coils, hard disk coils, C card coils, product label coils, read-write card coils, sensor coils, vibration motor coils; and various high-precision special-shaped coils, patch-type coils, multi-wire parallel winding Coils, car clutches, water energy meters, etc.
