Product Features

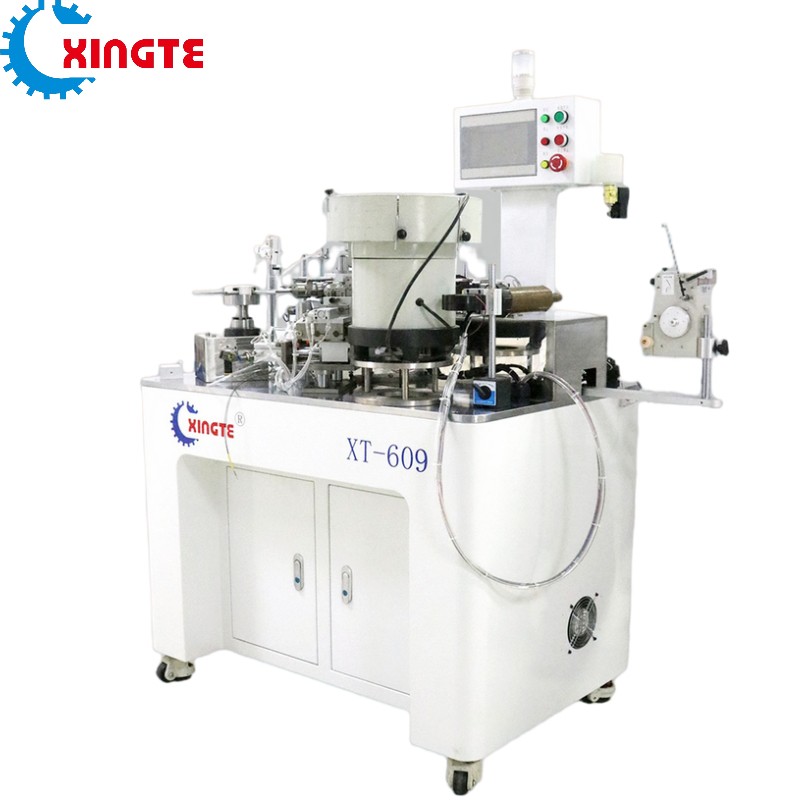

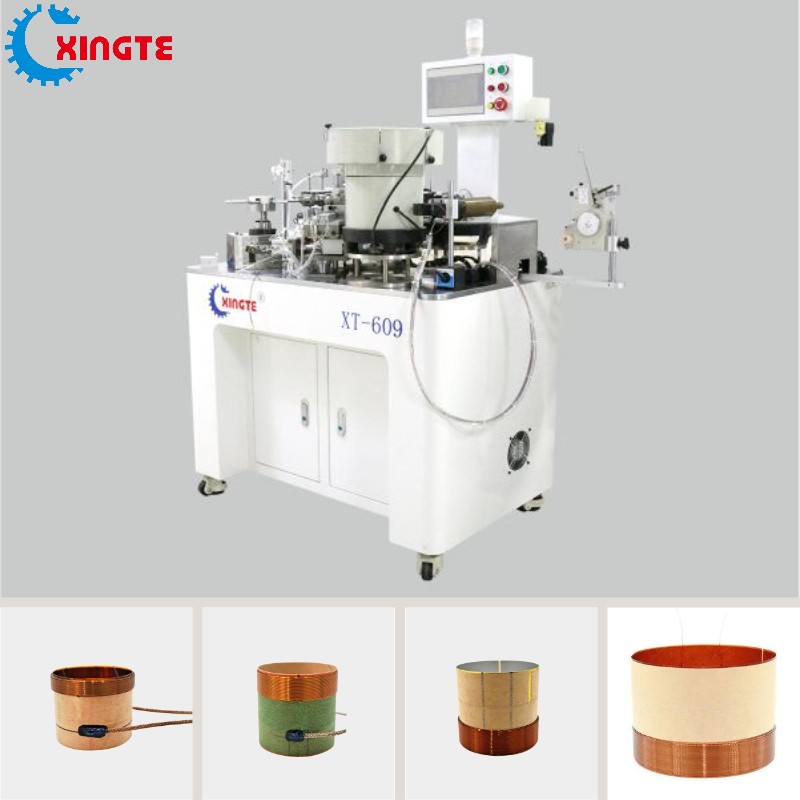

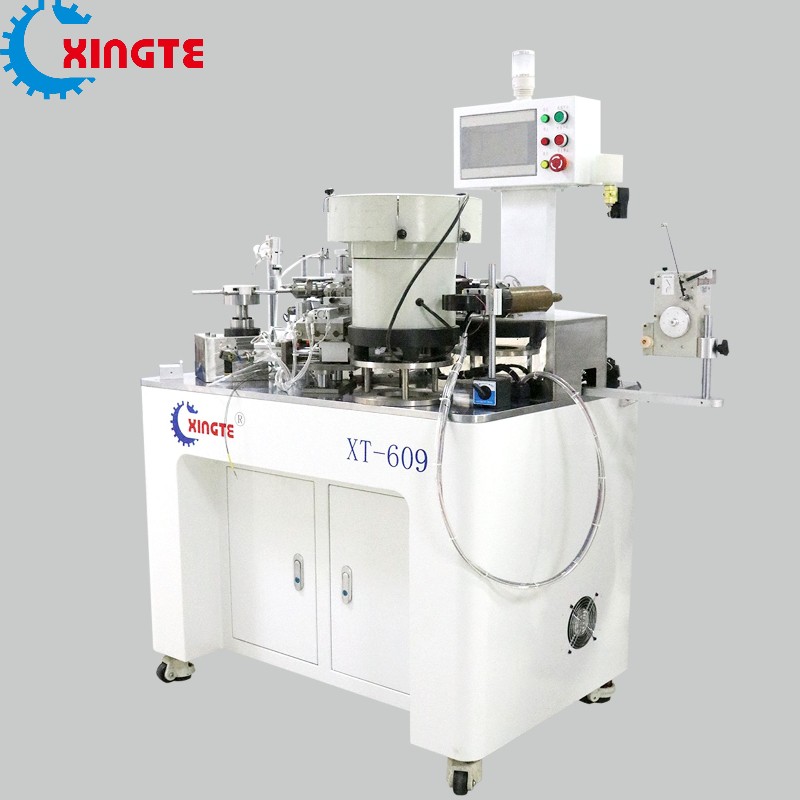

This machine is a special model for skeleton voice coils. It can wind both alcohol-soluble and hot-air enameled wires.
It can also be used for air-core coil winding if turn off the bobbin part
It adopts flying fork winding and six-station rotary trimming to improve production efficiency. This machine is the most efficient model in the industry. The capacity can reach 2000 PCs per hour based on about 30 turns. It improves product quality and saves 3-4 labor costs. , hot air wound products do not require baking
Product parameters
| Model number: | XT-609 |
| Wire Diameter : | 0.04-0.2mm( can customized) |
| Coil stack height | ≤5mm |
| Coil outer diameter | ≤15mm |
| Yield rate | ＞ 98% |
| Utilization rate | ＞85% |
| Winding speed | 4800rpm |
| Capacity | 2000pcs /H |
| Tensioner | Servo tensioner |
| Power: | 2 KW |
| Power supply: | AC 220V,50/60Hz |
| Air pressure: | > 0.6Mpa |
| Machine dimension: | 780*14600*1560mm |
| G. W: | 460KGS |
Applications area

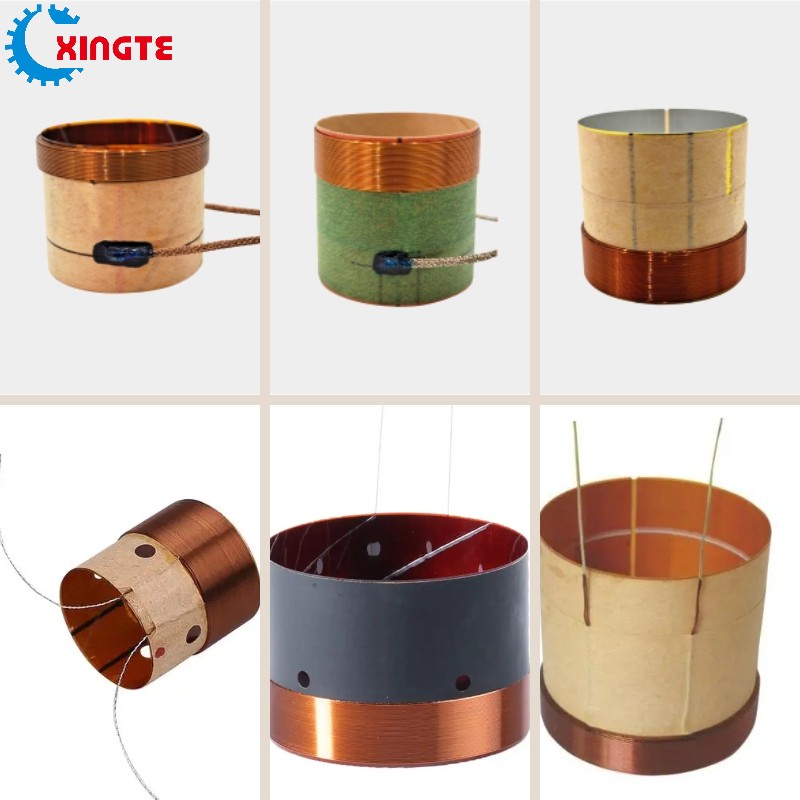

Paper tube, rubber tube-based speaker voice coil, cavity speaker voice coil, Bluetooth audio
