High-precision multi-function Toroidal winding machines with PLC control for automated and simplified operation.

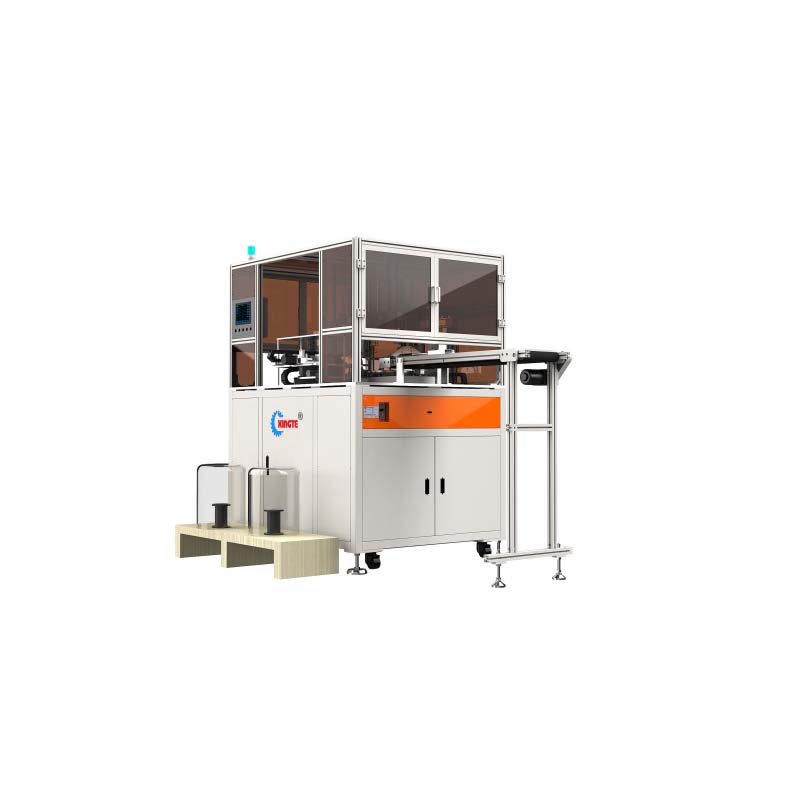

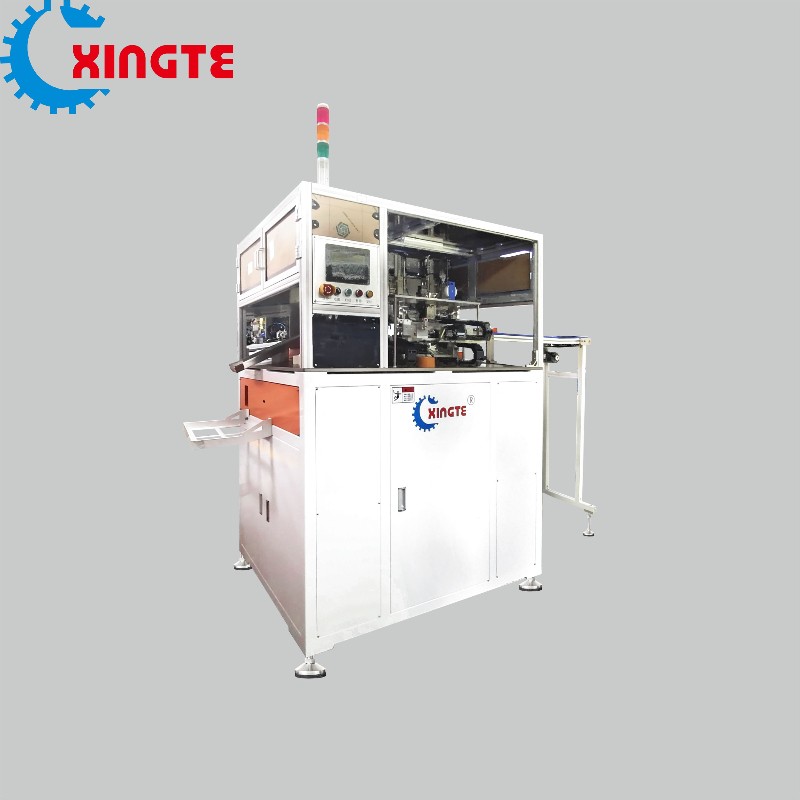

XT-CH001-3 is a fully automatic toroidal coil winding machine for various doughnut-shaped cores,
It is the most versatile machine for wire diameters from 0.5-2.5mms. stable and durable.

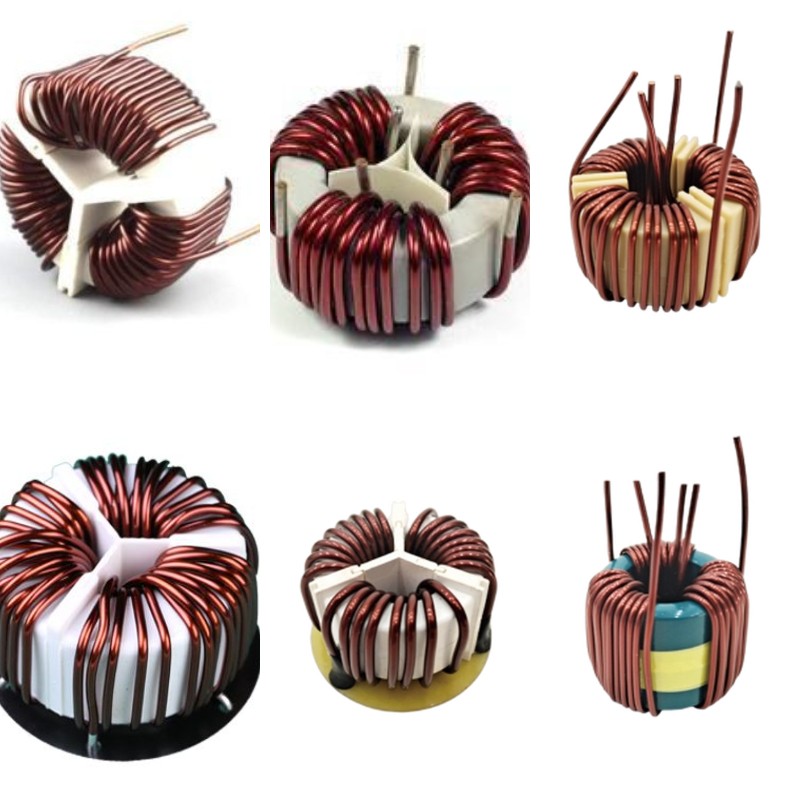

This machine can have single winding, two windings, three windings
Product Features
A fully automatic magnetic ring winding machine specially designed for multi-windings.
Automatic magnetic core uploading, wire feeding, winding, unloading, etc.
Dual working station design, which greatly improves the winding speed.
It can be single layer, two layers reciprocating, three layers of wiring, precise wiring, and high efficiency.
wide range of wire diameter compatibility from 0.5mm- 2.5mm
Fully automated, One person can operate multiple machines.
It will automatically stop when there is a shortage of materials (magnetic core, copper wire).
The magnetic core can be amorphous, iron powder core, iron-silicon-aluminum, and other materials.
The wire can use copper wire and aluminum wire,
the speed is adjustable, and the specifications are easy to change Fast.
Product parameters
| Model number: | XT-CH001-3 |
| Wire Diameter : | 0.5 ~ 2.5mm |
| Coil outer diameter | 15-50mm |
| Coil inner diameter | ＞8 mm |
| Wire length | 100-1600mm |
| speed | 0.6-1.2s/turn |
| working station: | 2 stations |
| Power: | 6KW |
| Power supply: | AC 380V,50/60Hz |
| Air pressure: | > 0.6Mpa |
| Machine dimension: | 1900*1150*2200mm |
| G. W: | 750KGS |
