Product Features

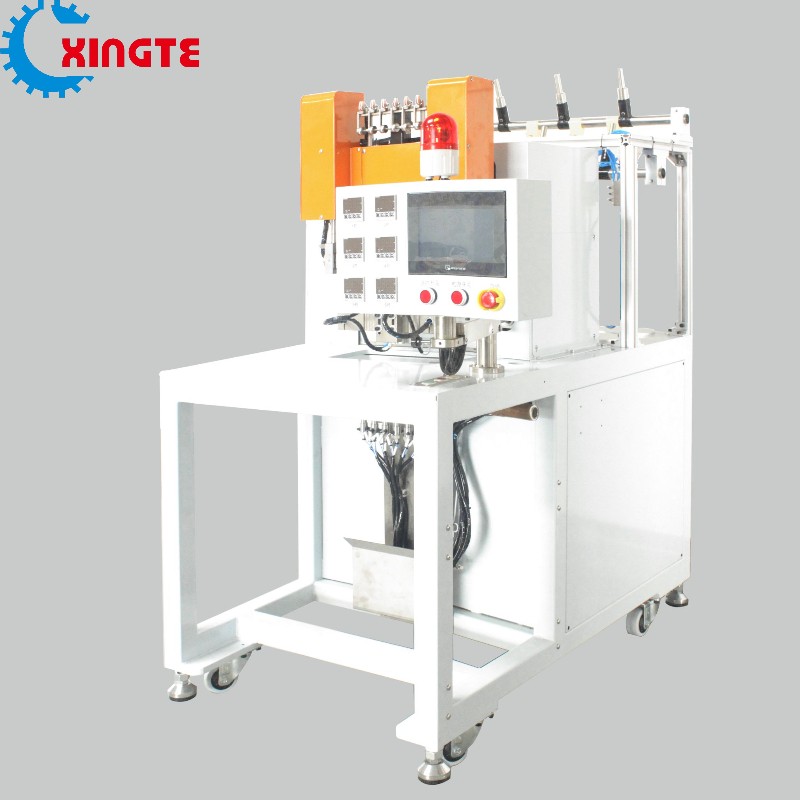

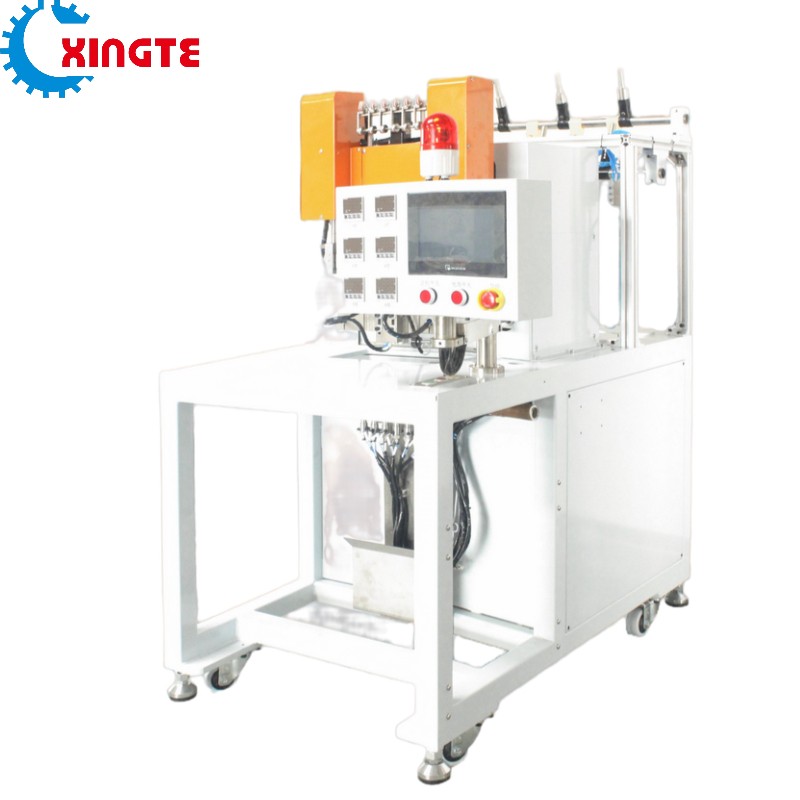

This VCM winding machine adopts advanced CNC motion controller. The 10-inch PLC display screen is programmable and easy to operate.
The motion controller can perform high-precision linear positioning, arc interpolation, spiral wrapping, and other actions;
The transmission part adopts Japanese Yaskawa servo motor and THK high-precision grinding screw, which has the characteristics of high rotation speed, accurate positioning and long service life.
It also has a safety structure design for stronger safety; it has a self-supplied air heating device, and each spindle has an independent air outlet, making the wound product more stable. Special coils can be designed and wound according to customer needs.
Product Parameters
| Model number: | XT-668 |
| Wire Diameter : | 0.02-0.15mm |
| Coil stack height | ≤20mm |
| Coil outer diameter | ≤20mm(can customized) |
| Number of axis | 4 axis |
| UHP | 600-800pcs/H |
| Power: | 3.5KW |
| Power supply: | AC 220V,50/60Hz |
| Air pressure: | > 0.6Mpa |
| Machine dimension: | 1400*710*1820mm |
| G. W: | 260KGS |
Applications

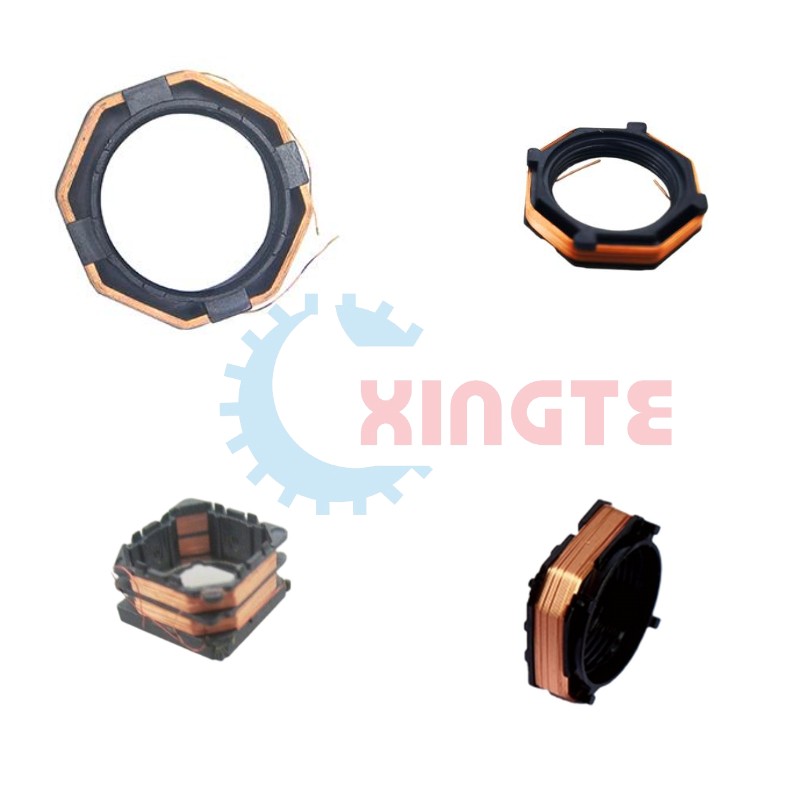

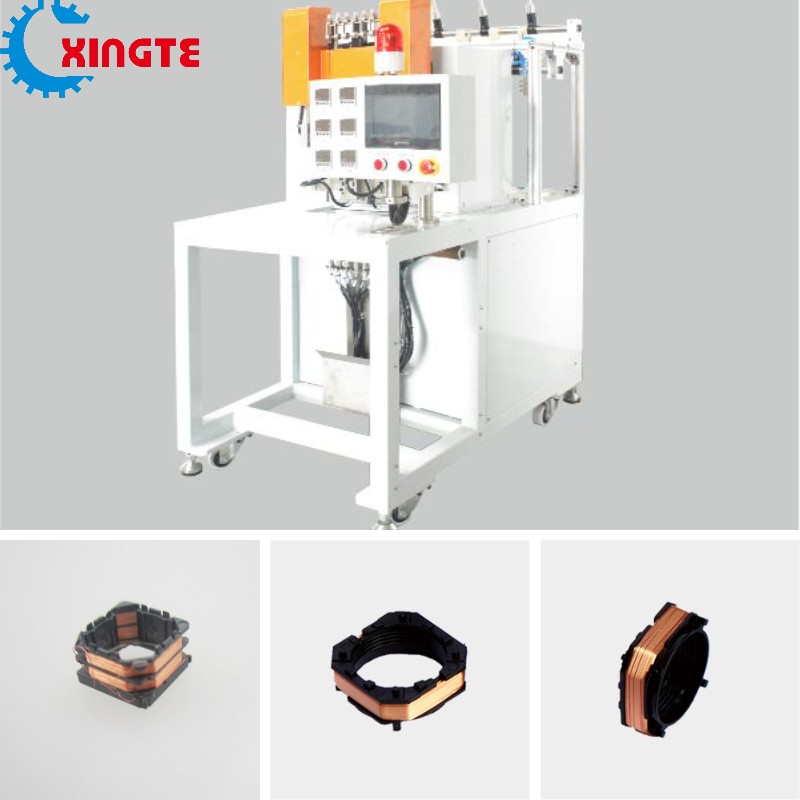

This equipment is a new type of machine specially designed for the production of VCM skeleton coils.
The winding machine has high precision and is widely used in computers, web cameras, scanners, mobile phone cameras, etc. It can also be tinned fully automatically.
