Product features

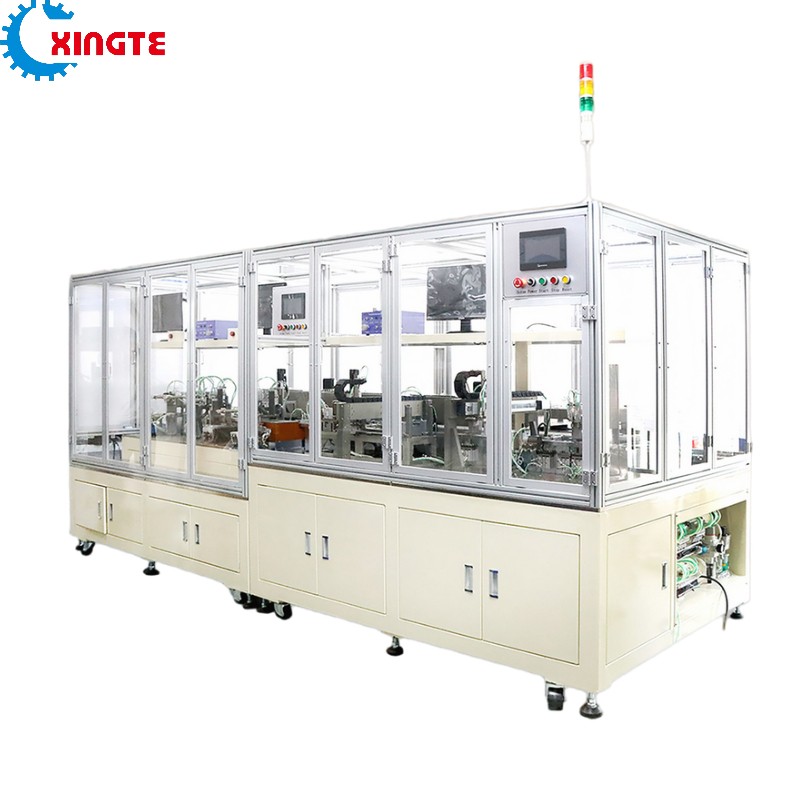

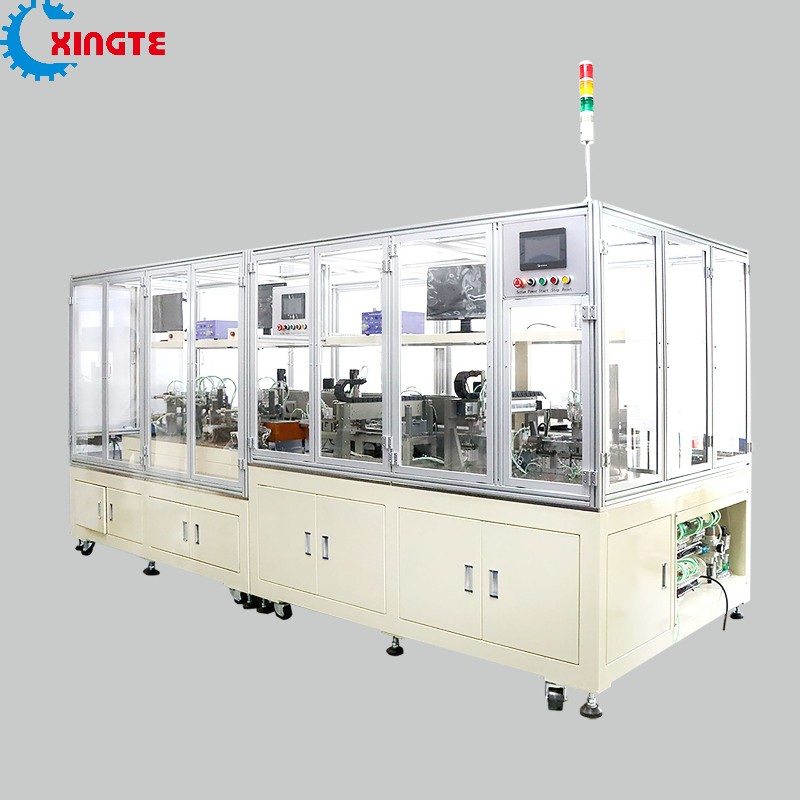

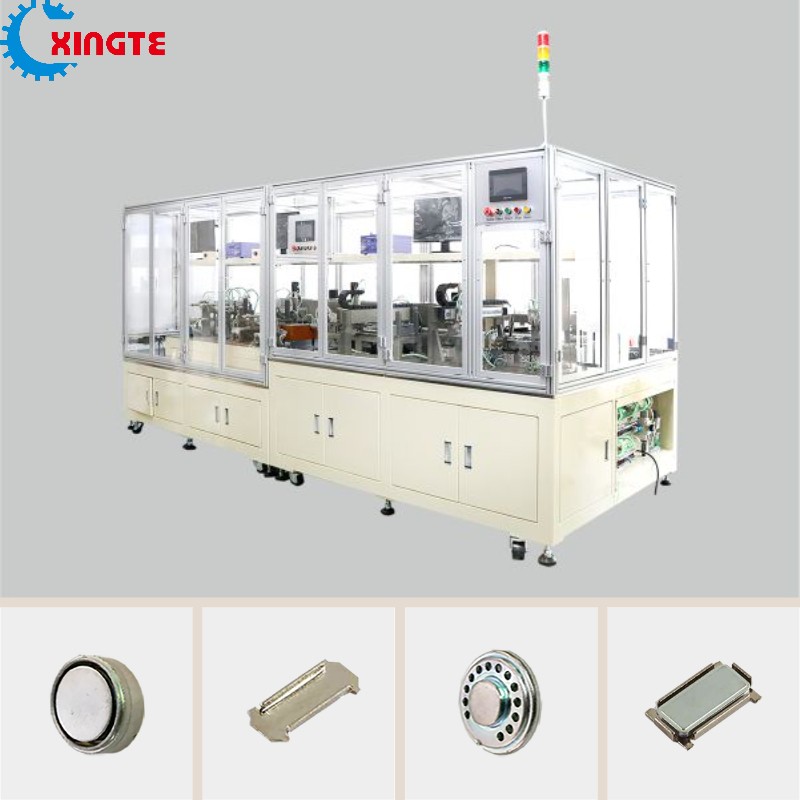

This machine is a fully automatic magnetic circuit assembly machine for mobile phone speakers. Each fixture can assemble two products.
It is suitable for anaerobic adhesives and AB adhesives. The machine also integrates functions such as automatic feeding, magnet magnetization, CCD detection and dispensing, CCD concentricity detection, shear force detection, defective product cleaning, and finished product loading. The machine utilization rate is 95 %
Above, the yield rate is over 99%, and it can produce 3,000-5,000 products per hour. It has high production efficiency and has outstanding advantages in replacing labor.
The system adopts CNC touch screen with full English interface, which is easy to operate and easy to train.
Intelligent monitoring saves costs and can produce continuously for 24 hours, and can be compatible with fully automated production lines and unmanned workshops.
It adopts full servo motor and high-precision grinding screw control, high efficiency and high precision, and is a high-yield model in the industry; (special coils can be customized according to customer needs).
| Model number: | XT-Q600 |
| Yield rate | ＞ 99% |
| Utilization rate | ＞55% |
| Control system | Touch screen+ multi axis motion control card |
| Capacity | 3000-5000pcs /H |
| Servo motor | 2 sets |
| Dispensing control system | 4-8 sets |
| Robot arm | Multiple sets |
| Magnetizer | 1-5 sets |
| Power: | 3-5KW |
| Power supply: | AC 220V,50/60Hz |
| Air pressure: | > 0.6Mpa |
| Machine dimension: | 3000*1500*1750mm |
| G. W: | 950KGS |
Applications

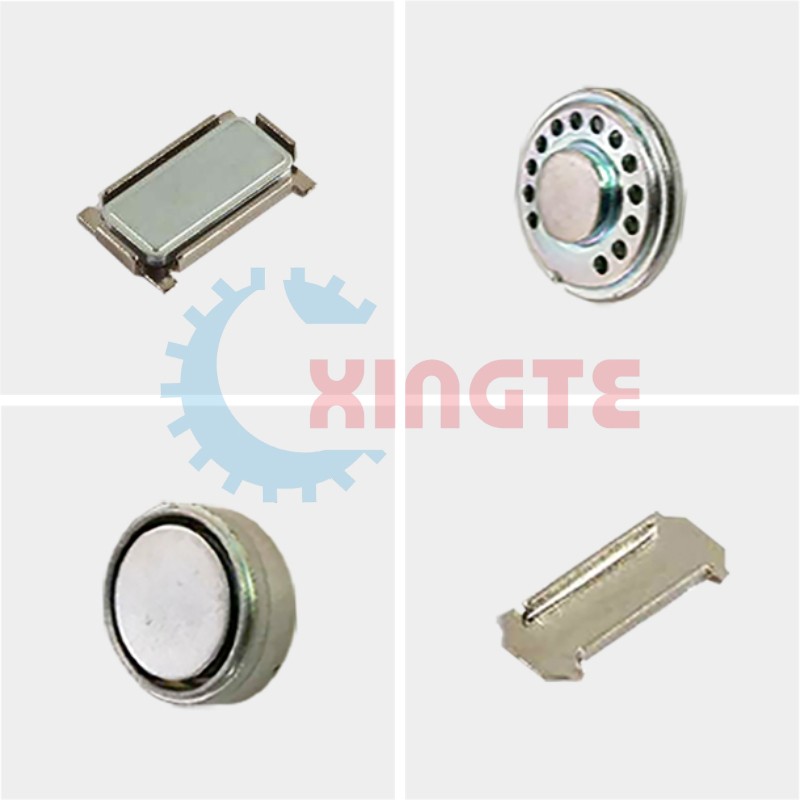

It is used in speaker magnetic circuit production
