Product Features

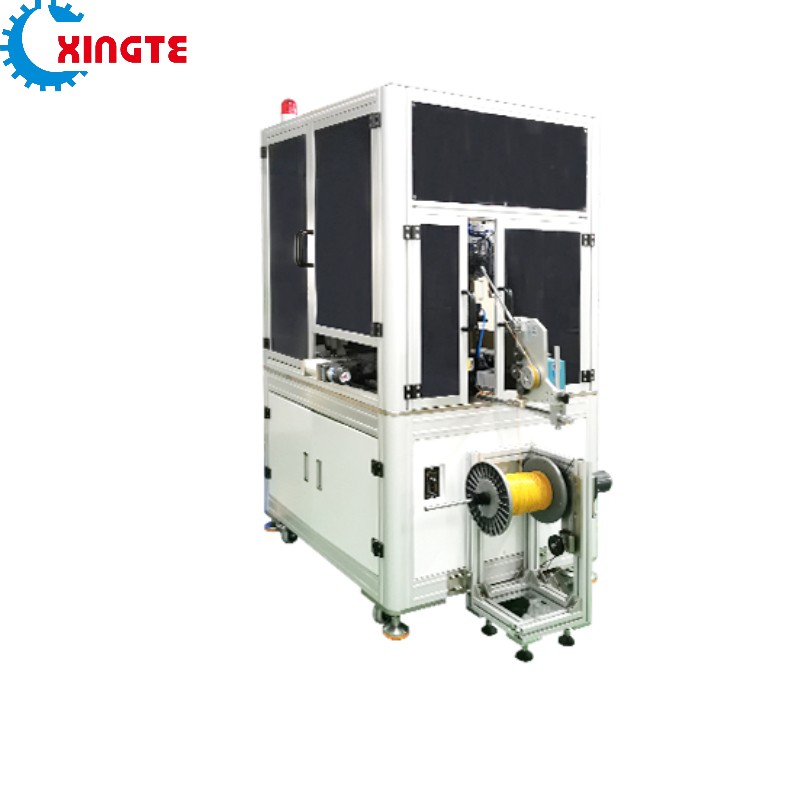

This equipment is a new type of machine specially designed by our company for the production of Alpha mode coils. The main coils produced are wireless charging and transmitting coils and other similar products.
This winding machine adopts an advanced CNC motion controller. The motion controller can perform high-precision linear positioning, accurate arc insertion positioning, and long service life. Special coils can be designed and wound according to customer needs.
Product Parameters

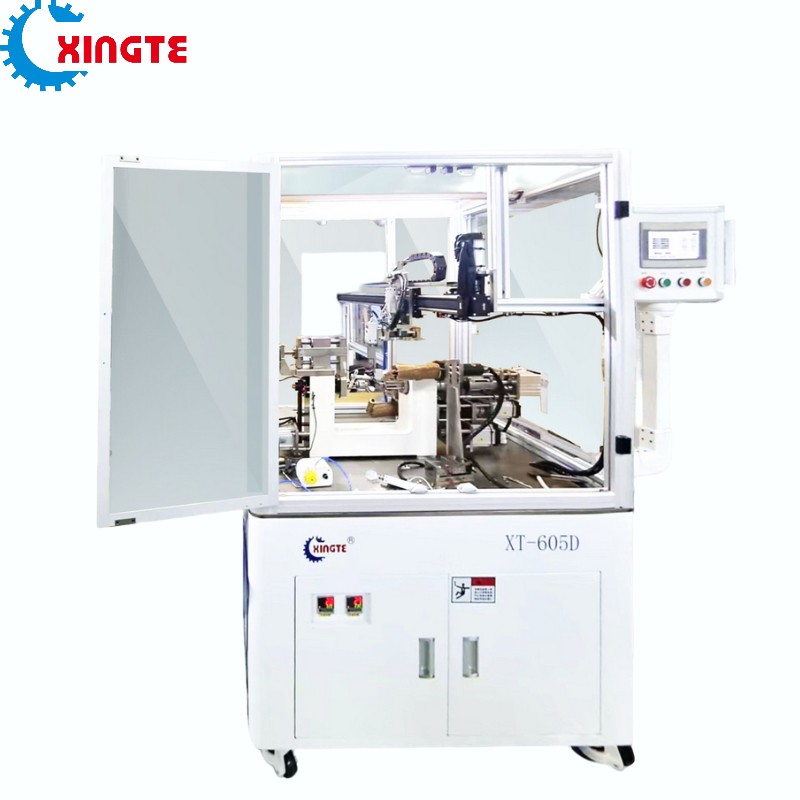

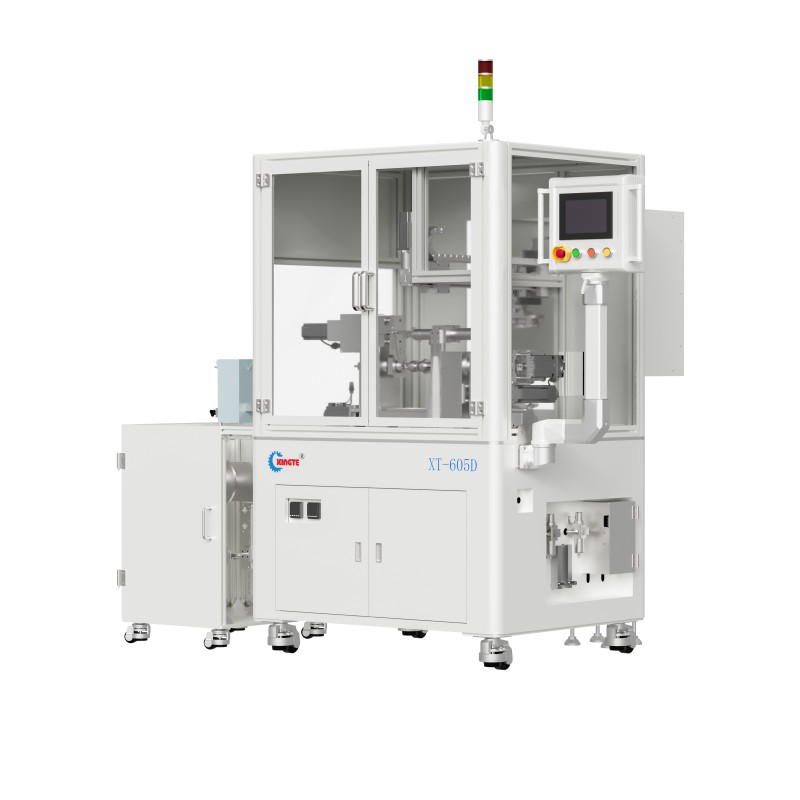

| Model | XT-605D |
| Wire diameter | 0.08-0.2mm |
| Coil stack height | Depend on the wire diameter |
| Coil outer diameter | ≤ 60mm ( can customized) |
| Yield rate | 99.8% |
| Lead wire length | 60-100mm ( can customized) |
| Power supply | AC220V,50/60Hz |
| Capacity | 350pcs/ H |
| Power | 3.5Kw |
| Air supply | Min. 0.6MPa |
| Machine dimensions | 1,550(L)x900(W)x1,720(H)mm |
| Machine weight | Approx. 500kgs |
Application areas
Wireless charging transmitter coil, transformer coil, etc.
