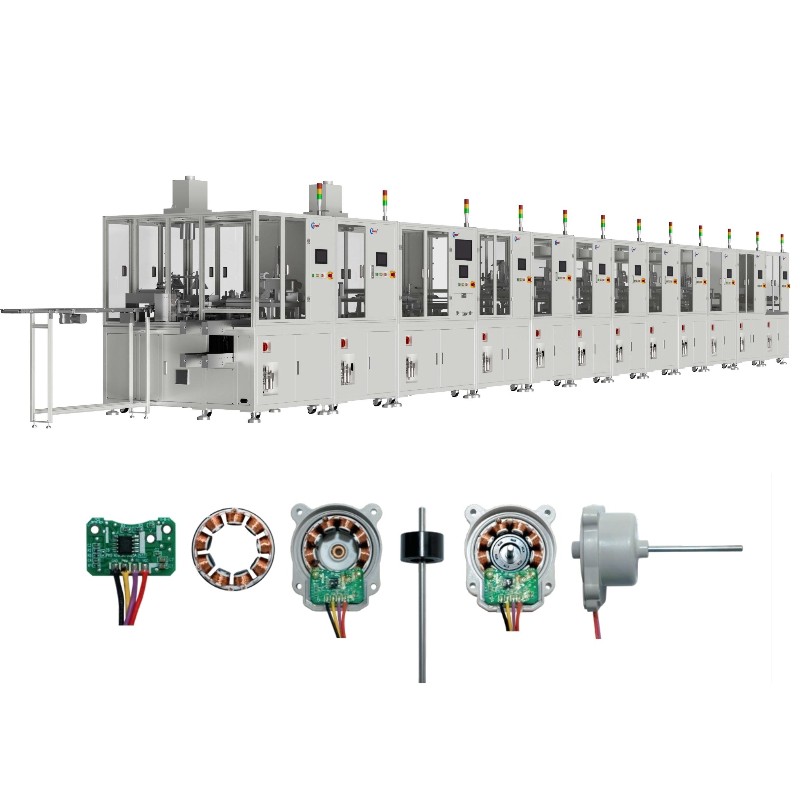

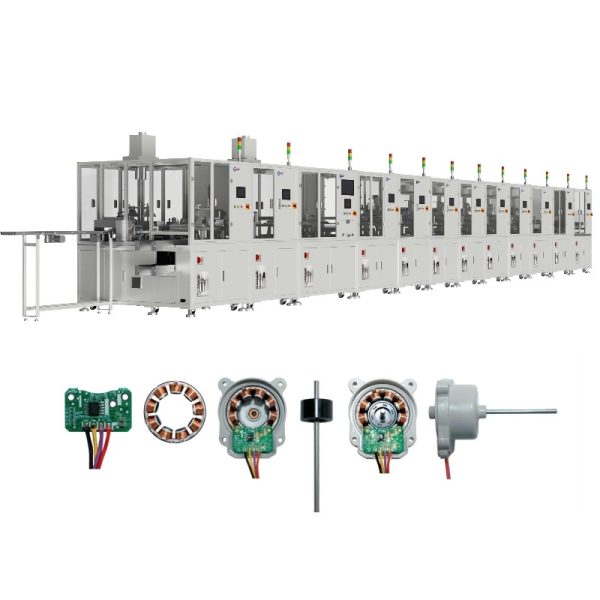

Fully automatic brushless stator assembly line XT-L2BMBZ1
Equipment Overview
This line is used for the automated assembly and testing of small household appliance motors. It includes PCB lead soldering, stator tinning,
stator-PCB soldering, A-cap installation, glue dispensing and spraying, rotor magnetization, rotor installation, B-cap installation,
ultrasonic welding, labeling, and run-in. Leads are manually loaded, while all other materials are automatically loaded.
The equipment performs automated assembly and testing, with automatic NG removal
Assembly Process
1, PCB board is automatically conveyed through the conveyor line
2, The lead wire is manually placed into the Line tooling
3, The lead wire end rubber is automatically stripped
4, The lead wire is welded to the PCB board
5, Statorfluxsoaking+tinning+statortesting Stator isinstalled in the PCB board Glue dispensing + glue spraying
6, Self-delivery to the bottom shell
7, Rotor magnetization
8, Rotor is installed in the stator assembly
9, Install the cover
10, Ultrasonic welding
11, Labeling
12, Aging and running-in
Features
UPH: 900 PCS
Power: 65KW
Yield: 98%
Utilization Rate: 95%
Equipment Dimensions: (L) 20,000 x (W) 1,500 x (H) 2,000mma
