Product Features
This machine suits various types of special-shaped voice coils (square type, runway type).
The control system adopts a full English touch screen interface, which is easy to operate. Staff can take up the job after two days of training.
The mechanical operation part is reasonably designed, making the production efficiency of the equipment higher than that of competitor equipment.
The metal materials used have been treated with special processes, which significantly improve the wear resistance and anti-corrosion performance of the equipment compared with ordinary equipment, extending the service life of the equipment. The mechanical movement part all uses imported servo motors and high-precision ball screws. The imported bearings ensure the product’s high efficiency and high precision, with small deformation and improved product quality; the whole machine adopts a safety design to prevent safety accidents during operation.
Product Parameters

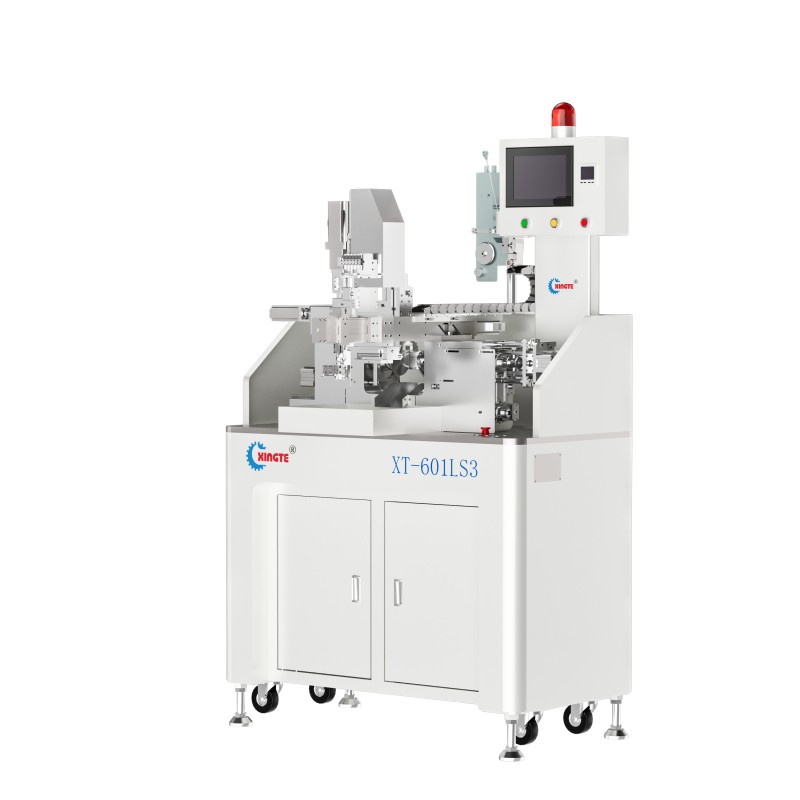

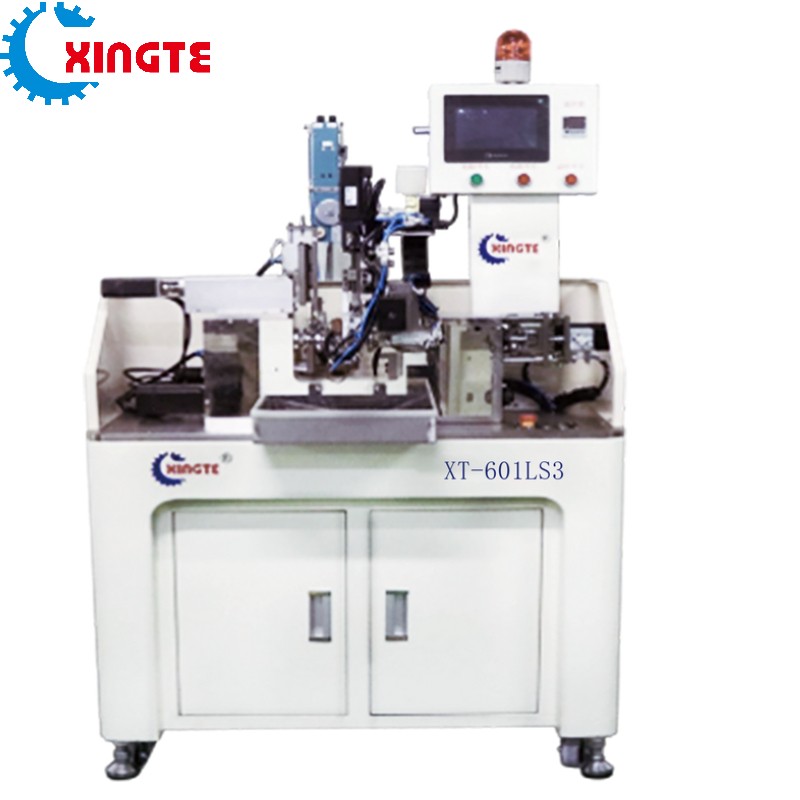

| Model | XT-601LS3 |
| Wire diameter | 0.015-0.18mm |
| Coil stack height | ≤ 25mm |
| Coil outer diameter | ≤ 60mm ( can customized) |
| Yield rate | 99.8% |
| Lead wire length | 40-70mm ( can customized) |
| Power supply | AC220V,50/60Hz |
| Capacity | 400pcs/ H |
| Power | 2Kw |
| Air supply | Min. 0.6MPa |
| Machine dimensions | 980(L)x500(W)x1,500(H)mm |
| Machine weight | Approx. 290kgs |
Applications
Mobile phone speakers, loudspeakers, 151, 1206, 1609 square speakers, runway speaker voice coil, etc
