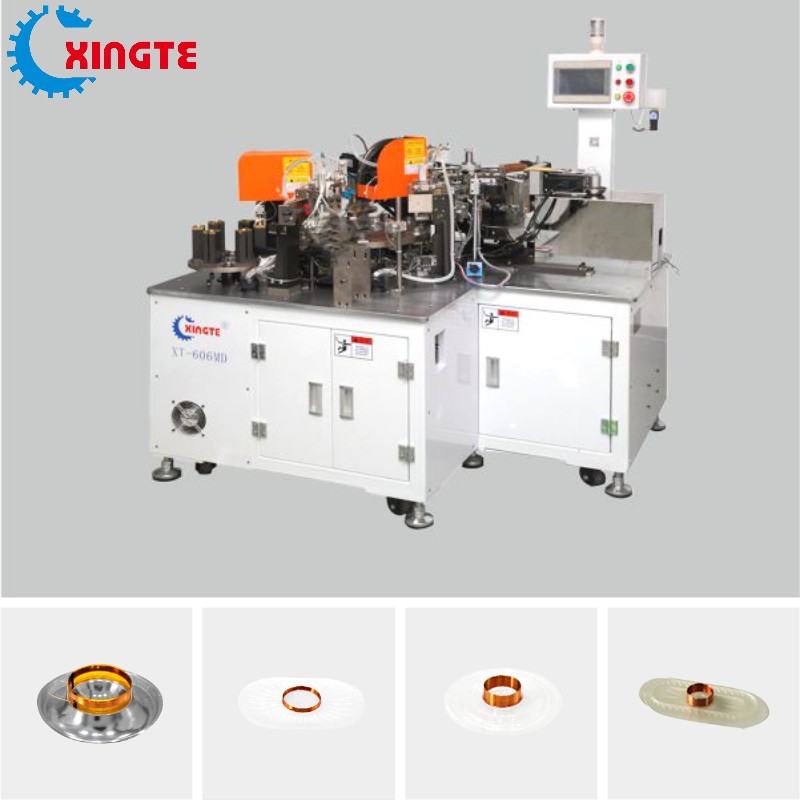

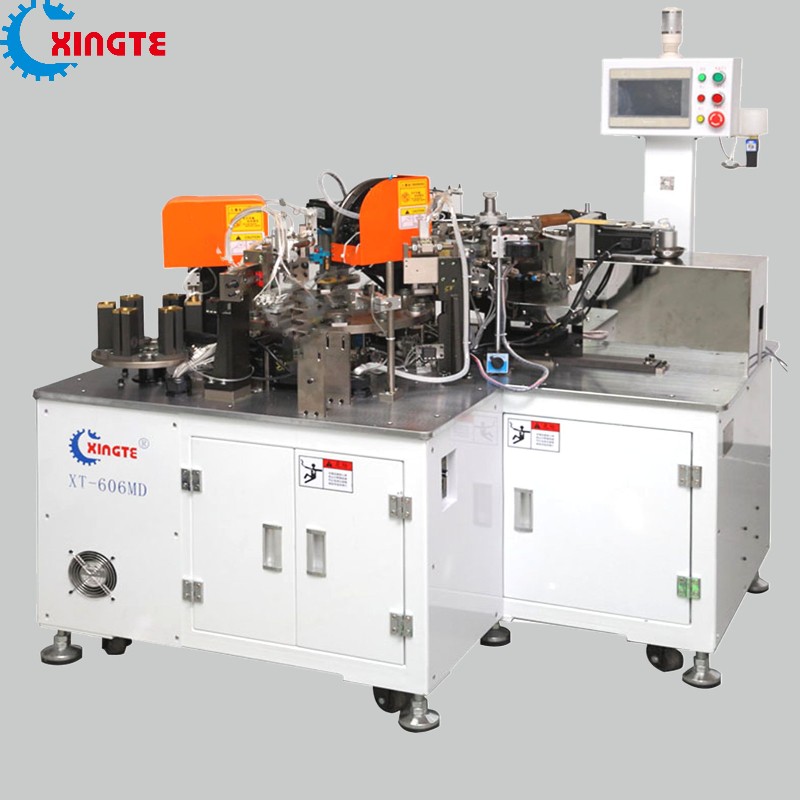

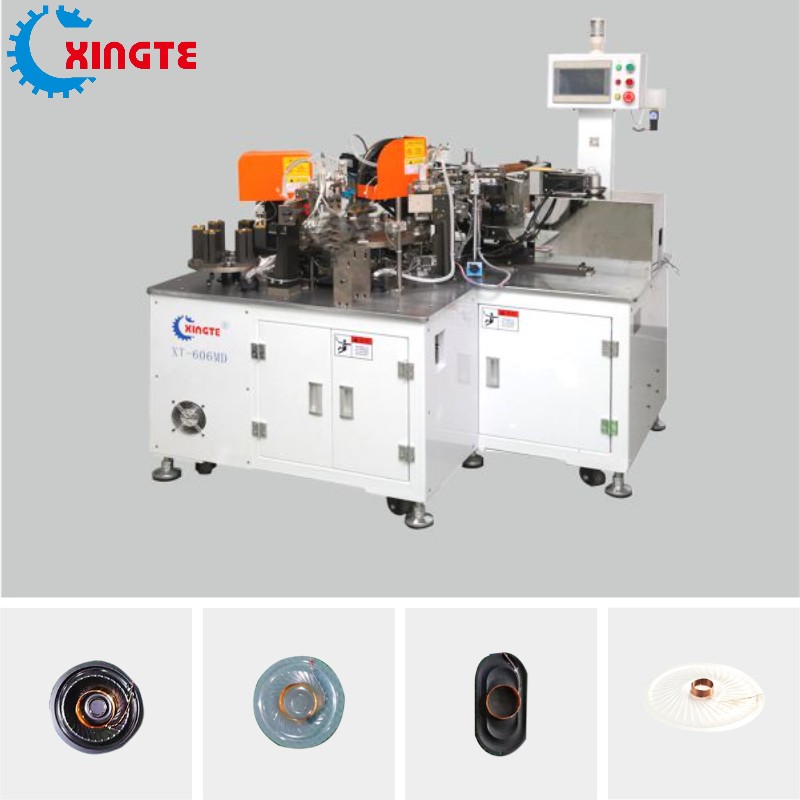

This machine is specially designed for voice coil winding and diaphragms-voice coil assembling. It can wind both alcohol-soluble and hot-air enameled wires. It is mainly used in the combined winding of voice coils and diaphragms, with a high degree of automation.
This equipment has the characteristics of high efficiency, large production capacity, and round-the-clock uninterrupted production. Greatly saves labor costs. It can meet the automated production needs of various users and has been unanimously recognized by customers.
Product Features
The control system adopts a full English touch screen interface, which is easy to operate. A new staff can take up the job after two days of training.
The mechanical operation part is reasonably designed, ensuring the production efficiency of the equipment higher than our competitors
The metal materials used have been treated with special processes, which significantly improve the wear resistance and anti-corrosion performance of the equipment compared with ordinary equipment, extending the service life of the equipment.
The mechanical parts use high-precision servo motors and stepper motors, and imported bearings ensure the high efficiency and high precision of the product; truly achieving stable and efficient production 24 hours a day after startup.
It can be compatible with fully automated production lines, and can also be used to manage multiple devices at the same time.
The diaphragm feed adopts a multi-station feeding trough, which does not require feeding for a long time and can be replenished at any time without stopping the machine. The diaphragm can be fed into a single piece without affecting the subsequent work stations.
This machine is the most efficient and stable model in the industry. The output can be calculated at around 1800-2000 PCS/H within 80 turns per hour.
Product parameters
| Model number: | XT-606MD |
| Wire Diameter : | 0.02-0.15mm |
| Coil stack height | ≤15mm |
| Coil outer diameter | ≤20mm(can customized) |
| Diaphragm diameter | 6-48mm |
| Diaphragm height | ＞0.006mm |
| Yield rate | ＞ 98% |
| Utilization rate | ＞85% |
| Capacity | 1500pcs/H |
| Power: | 3.5KW |
| Power supply: | AC 220V,50/60Hz |
| Air pressure: | > 0.6Mpa |
| Machine dimension: | 1800*1900*880mm |
| G. W: | 450KGS |
Application areas

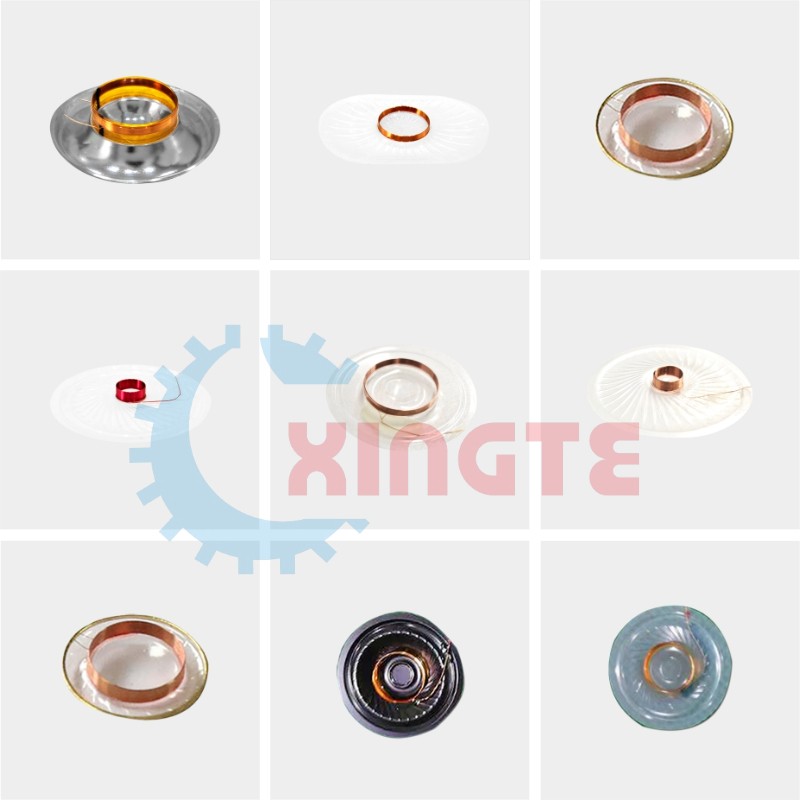

Headphone voice diaphragm, in-ear headphone voice diaphragm, true wireless Bluetooth headset voice diaphragm, security speaker voice diaphragm, receiver and other voice diaphragm and voice coil combinations.
