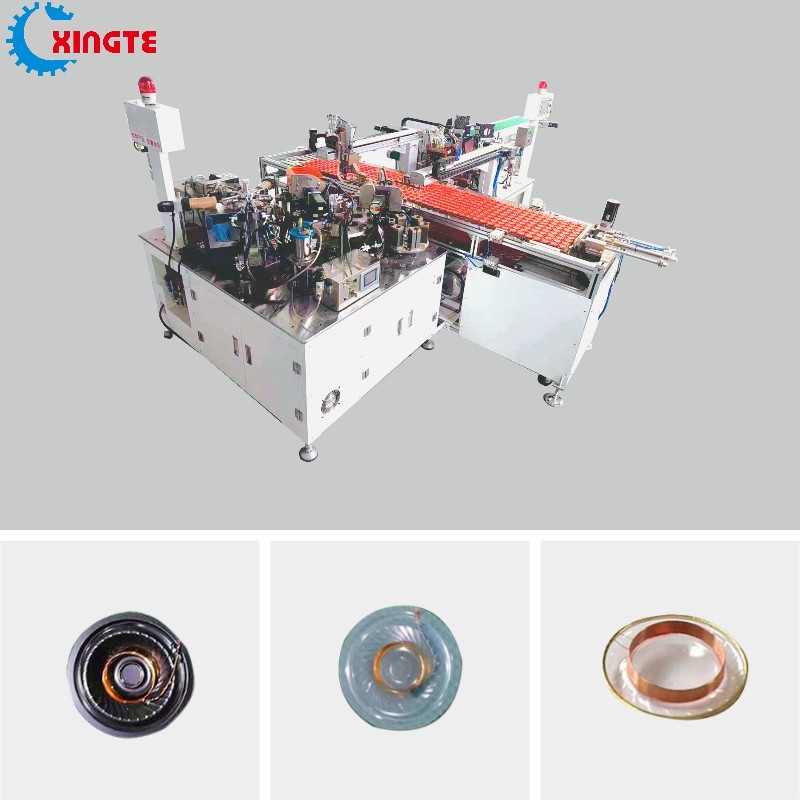

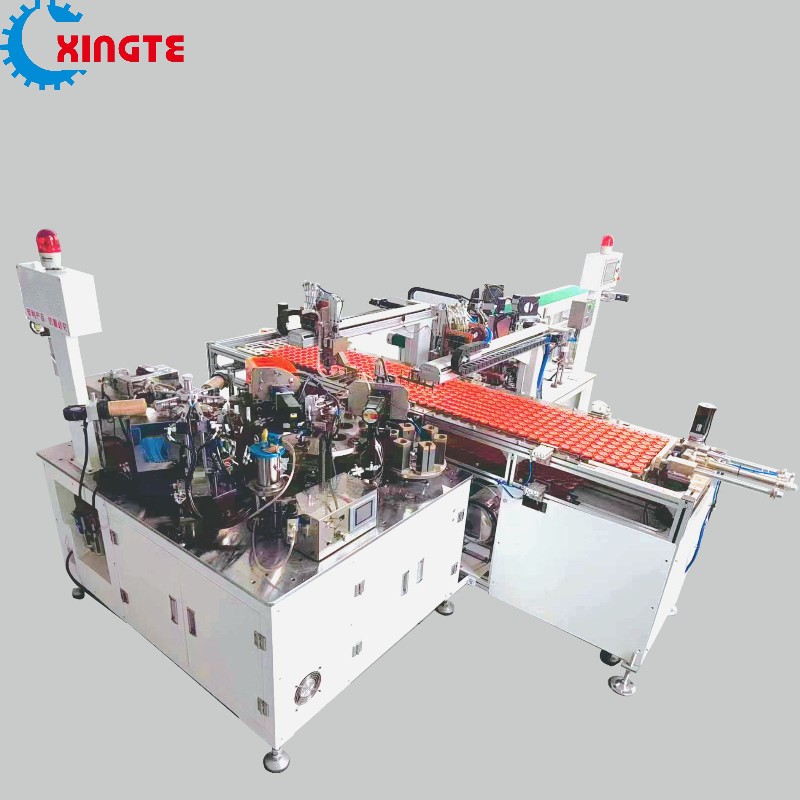

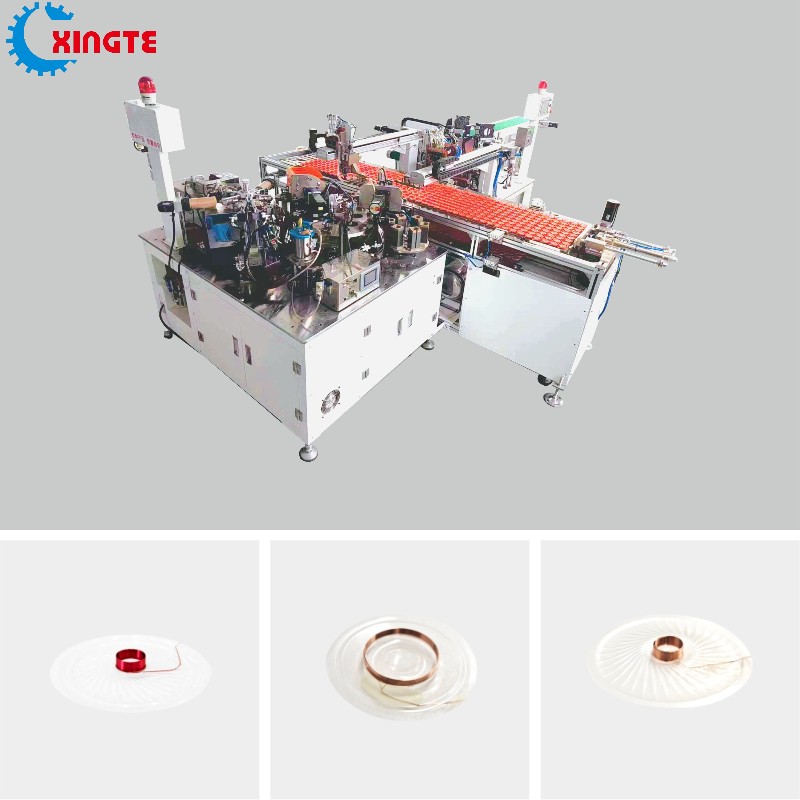

This is a fully automatic voice coil winding and diaphragm wire arranging integrated machine, which can glue the voice coil lead wires and sound diaphragms of speakers together in a certain shape.
Product Features
Using the natural drying method of conventional glue without using UV glue and UV lamps, greatly reduced the cost of speaker auxiliary materials
Automatic lead wire arrangement, precise glue dispensing, beautiful arc appearance, and good consistency;
The lead wire arrangement arc can be more than 140 degrees, and the copper wire and the high and low arc surfaces of the sound diaphragm are completely matched, which helps to extend the life of the speaker in the noise test;
The amount of glue is small and precise glue dispensed, which helps improve the consistency of the speaker’s frequency response curve and the sensitivity of the speaker;
Using rotary type 12 stations, the number of fixtures is small, and large and small fixtures are highly interchangeable, which greatly reduces the cost of replacing fixtures;
Fully automatic loading and unloading, no manual intervention at all; production capacity 1600pcs/h*24 hours.
Product Parameter
| Model number: | XT-606HX001 |
| Wire Diameter : | 0.02-0.15mm |
| Coil stack height | ≤20mm |
| Coil outer diameter | ≤20mm(can customized) |
| Yield rate | ＞ 98% |
| Utilization rate | ＞85% |
| Capacity | 1500pcs/H |
| Power: | 6KW |
| Power supply: | AC 220V,50/60Hz |
| Air pressure: | > 0.6Mpa |
| Machine dimension: | 1630*1200*1800mm |
| G. W: | 650KGS |
Application areas

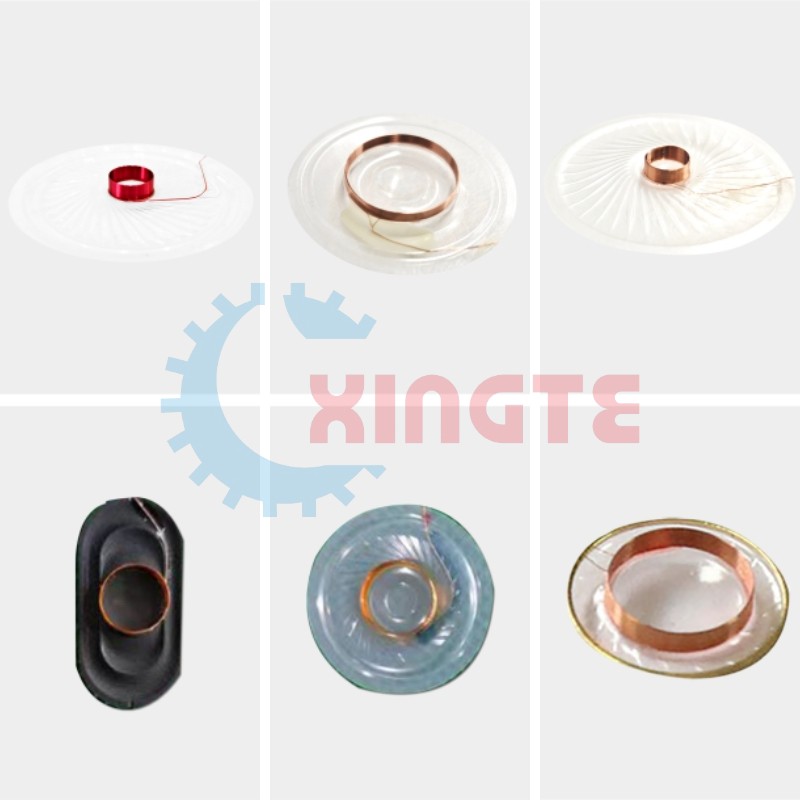

Headphone voice diaphragm, in-ear headphone voice diaphragm, true wireless Bluetooth headset voice diaphragm, security speaker voice diaphragm, receiver and other voice diaphragm and voice coil combinations.
