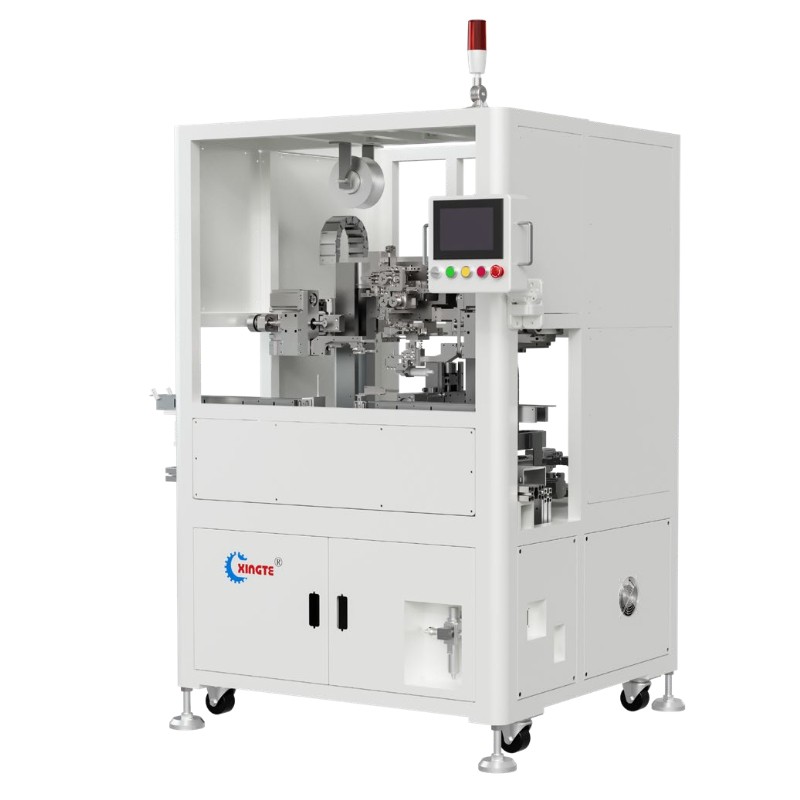

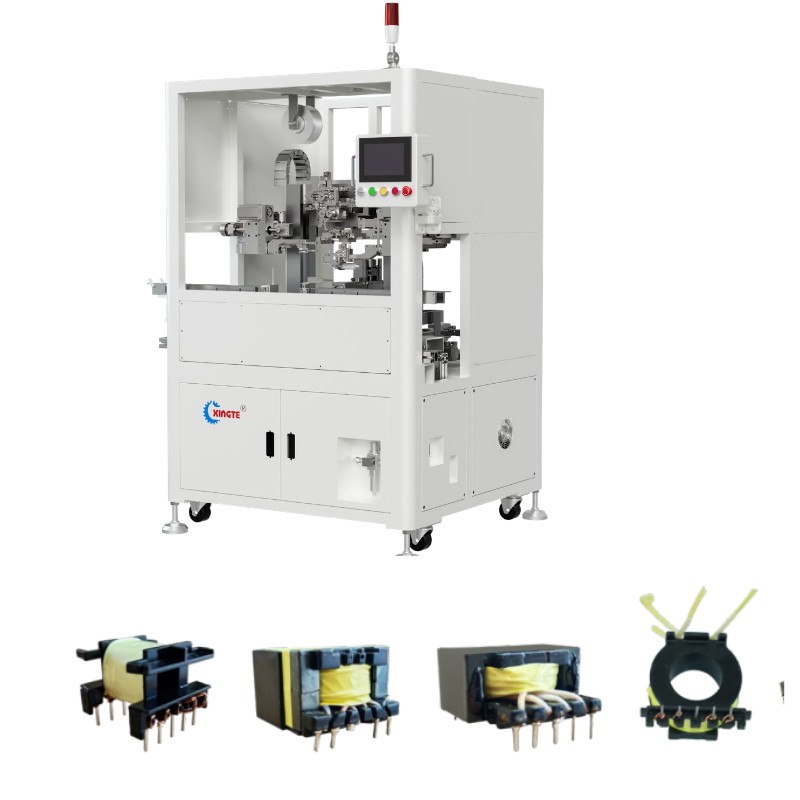

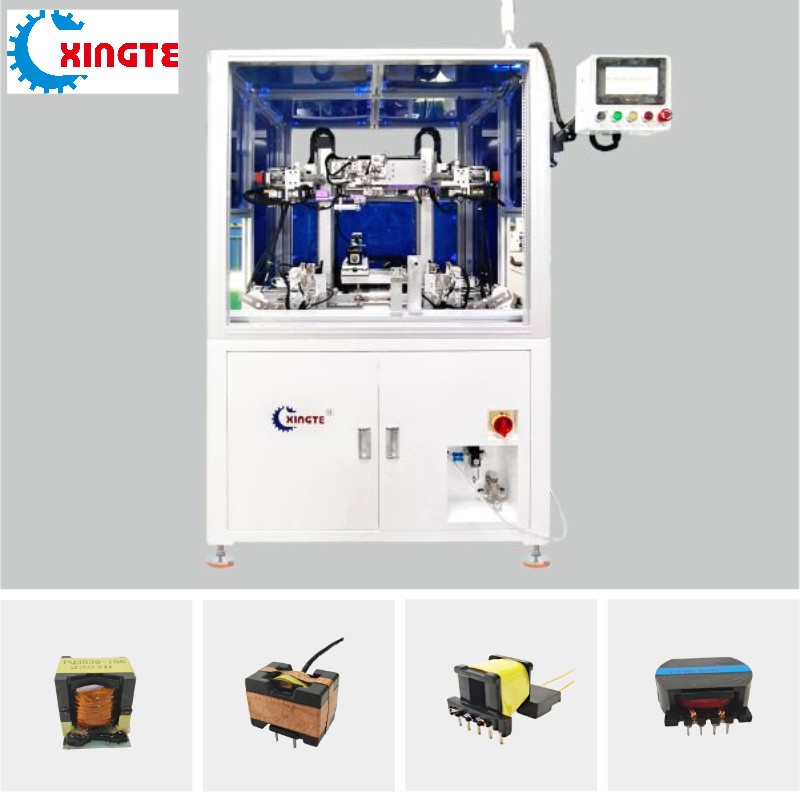

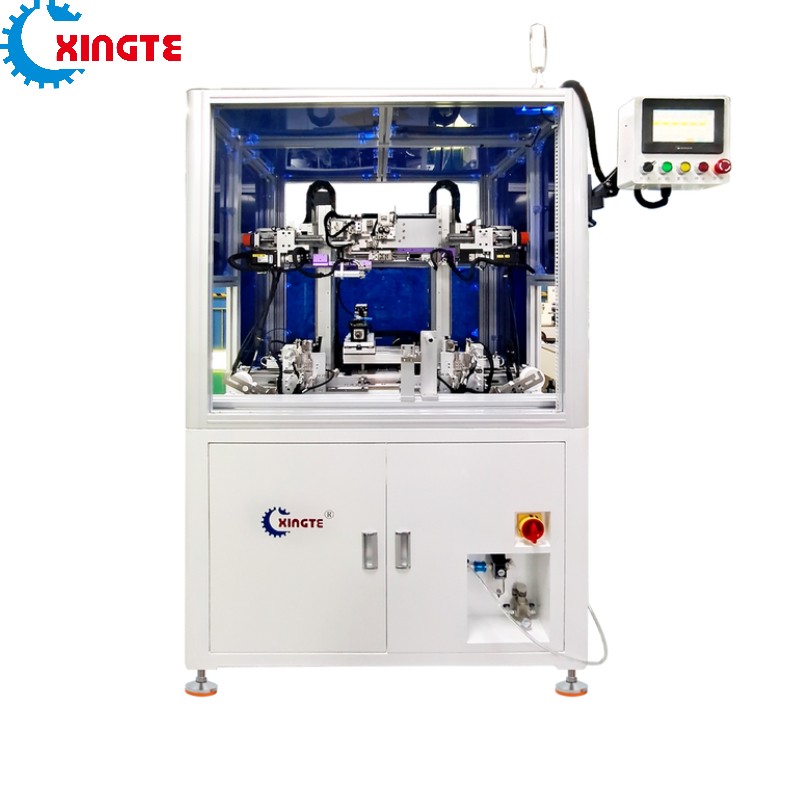

Multifunctional single-axis casing winding machine XT-CTW01
Main features
The needle guide rod can rotate 360° with an accuracy of up to 0.002mm. It has ultra-high speed and can run up to 5000PRM.
It is miniaturized and space-saving. This machine has a novel appearance design, simple operation, easy maintenance, good stability,
high cost performance and high efficiency.
It accepts single-color and two-color casing, can thread Litz wires through casing, and can automatically wrap tape,
Isolation tape wrapping, L-shaped tape, fold-back tape, automatic pin wrapping, and lead wire management. It can also
be equipped with automatic copper foil wrapping, wire wrapping tape, three-wire three-tube installation, and single-layer parallel winding.
It offers numerous functions, fast speed, and high efficiency. It also offers easy and low-cost conversion options.
It is suitable for consumer transformers, home appliances, and SMD applications, and is widely used in home appliances, automotive, new energy, PQEQ, and other fields.
Product Parameters
| Model number: | XT-CTW01 |
| Wire Diameter : | 0.15 ~ 1.5mm |
| Maxi winding speed | 5000Rpm |
| Maxi bobbin diameter | 80mm |
| Power: | 3KW |
| Power supply: | AC 220V,50/60Hz |
| Air pressure: | > 0.4-0.6Mpa |
| Machine dimension: | 1100*1050*1800mm |
| G. W: | 550KGS |
