High-speed Toroidal winding machines with PLC control for automated and simplified operation.

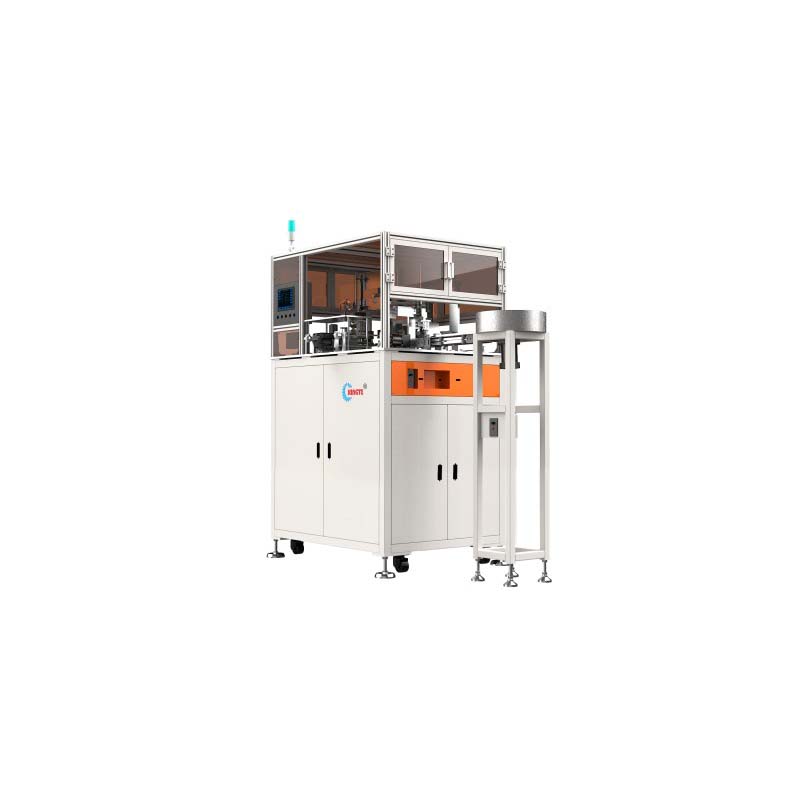

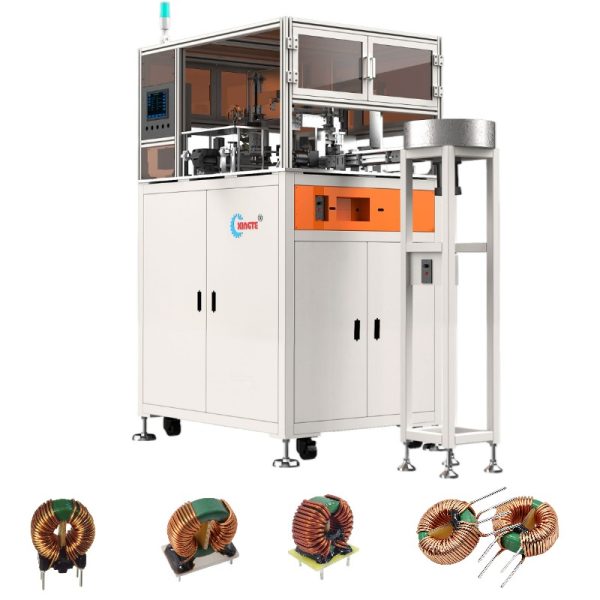

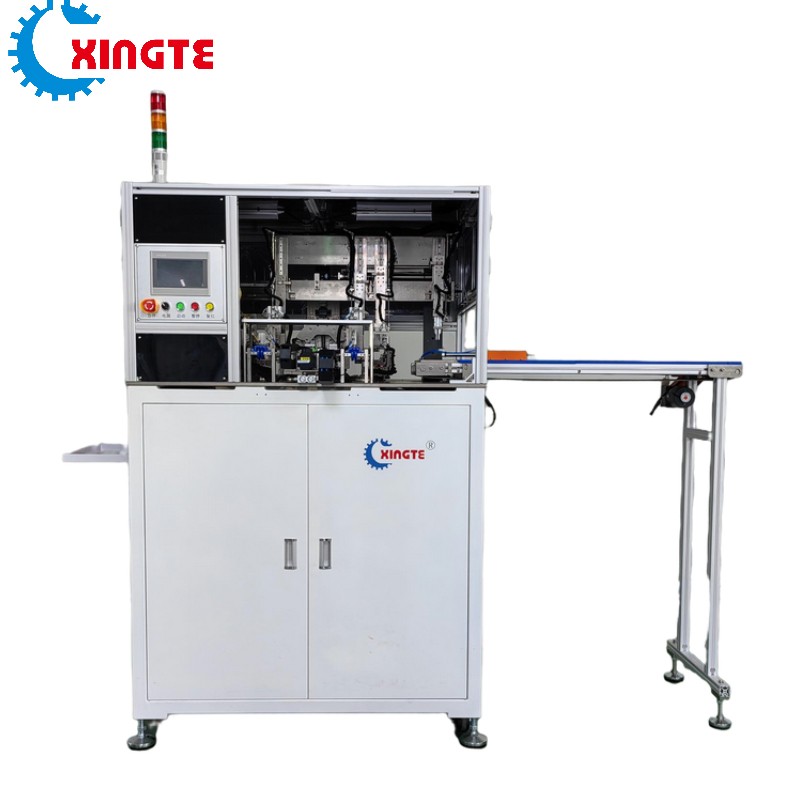

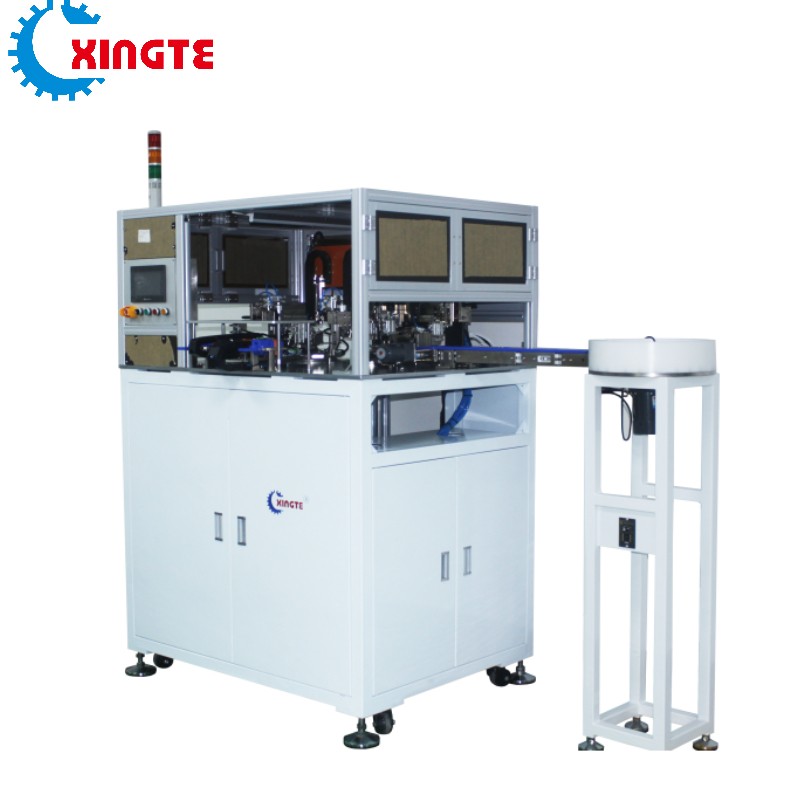

XT-CH001S is a fully automatic toroidal coil winding machine for various doughnut-shaped cores,
It is the most versatile machine for wire diameters from 0.2-2.2mms. stable and durable.
Product Features
A fully automatic magnetic ring winding machine specially designed for the symmetrical winding method of magnetic rings.
Automatic magnetic core uploading, wire feeding, winding, unloading, etc.
Dual working station design, which greatly improves the winding speed.
It can be single layer, two layers reciprocating, three layers of wiring, precise wiring, and high efficiency.
wide range of wire diameter compatibility from 0.5mm- 2.2mm
Fully automated, One person can operate multiple machines.
It will automatically stop when there is a shortage of materials (magnetic core, copper wire).
The magnetic core can be amorphous, iron powder core, iron-silicon-aluminum, and other materials.
The wire can use copper wire, and aluminum wire,
the speed is adjustable, and the specifications are easy to change Fast.
Product parameters
| Model number: | XT-CH001S |
| Wire Diameter : | 0.5 ~ 2.2mm |
| Coil O.D | 10-60mm |
| Coil I.D | ＞8 mm |
| Wire length | 100-1600mm |
| speed | 0.6-1.2s/turn |
| working station: | 2 stations |
| Power: | 4.5KW |
| Power supply: | AC 380V,50/60Hz |
| Air pressure: | > 0.6Mpa |
| Machine dimension: | 1000*1700*2100mm |
| G. W: | 700KGS |
Application areas

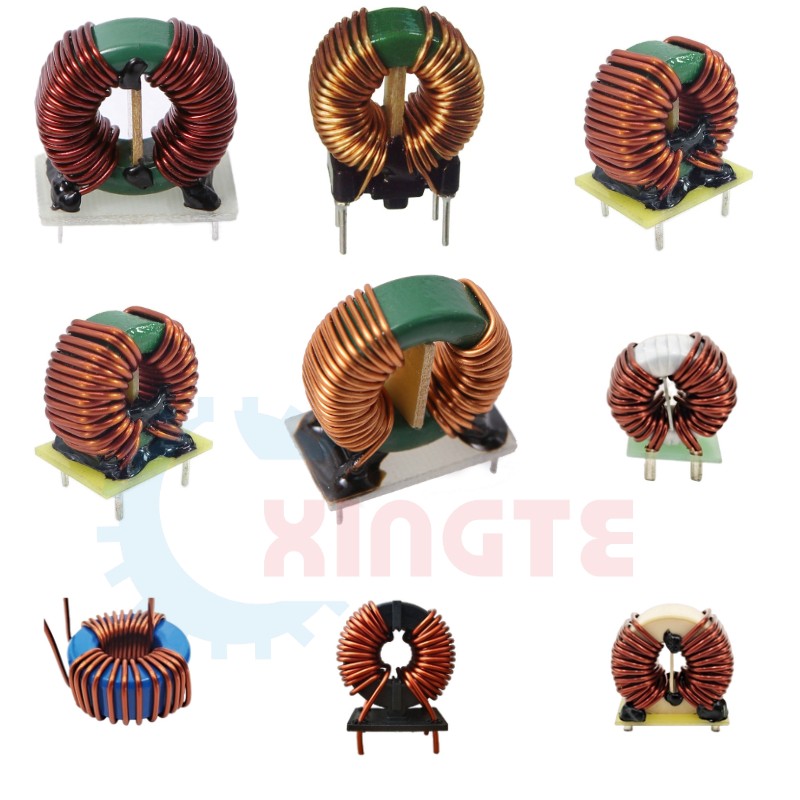

Automotive electronics, medical device power supply, home appliance power supply, and other magnetic ring products, special wire thick wire single wire double wire, common mode, multilateral winding
